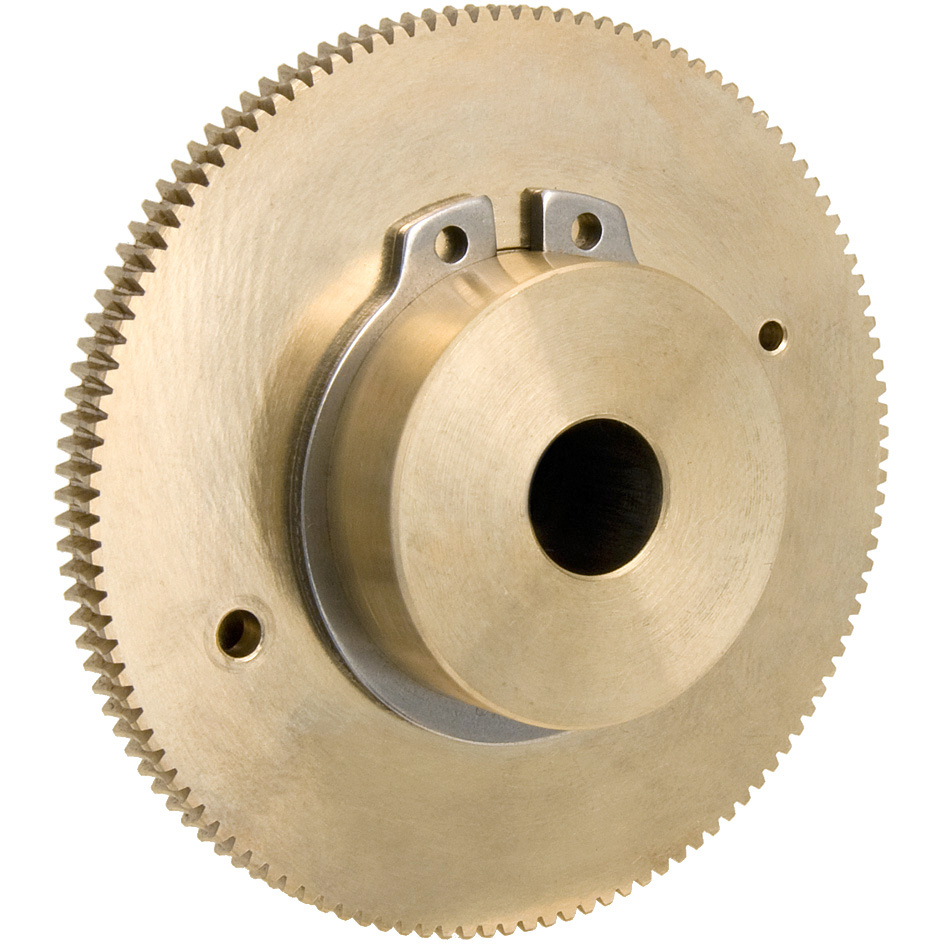

Precision Anti-Backlash Wormwheels

Precision Anti-Backlash WormWheels to work on centres with Worms

Ondrives is the UK manufacturer of worms and wheel.

Sku
(Part No.)
Gear Tooth Type
Axial Module mx
No. of Starts worm [z1]
No. of Teeth [z]
Centre Distance [a]
Bore Diameter [di] H7
ABPWG0.5-50-1Wormwheel0.515017.55
ABPWG0.5-52-1Wormwheel0.5152186
ABPWG0.5-55-1Wormwheel0.515518.756
ABPWG0.5-58-1Wormwheel0.515819.56
ABPWG0.5-60-1Wormwheel0.5160206
ABPWG0.5-62-1Wormwheel0.516220.56
ABPWG0.5-65-1Wormwheel0.516521.256
ABPWG0.5-68-1Wormwheel0.5168226
ABPWG0.5-70-1Wormwheel0.517022.56
ABPWG0.5-72-1Wormwheel0.5172236
ABPWG0.5-75-1Wormwheel0.517523.756
ABPWG0.5-78-1Wormwheel0.517824.58
ABPWG0.5-80-1Wormwheel0.5180258
ABPWG0.5-82-1Wormwheel0.518225.58
ABPWG0.5-85-1Wormwheel0.518526.258
ABPWG0.5-90-1Wormwheel0.519027.58
ABPWG0.5-95-1Wormwheel0.519528.758
ABPWG0.5-100-1Wormwheel0.51100308
ABPWG0.5-105-1Wormwheel0.5110531.2510
ABPWG0.5-110-1Wormwheel0.5111032.510
ABPWG0.5-115-1Wormwheel0.5111533.7510
ABPWG0.5-120-1Wormwheel0.511203510
ABPWG0.5-130-1Wormwheel0.5113037.510
ABPWG0.5-140-1Wormwheel0.511404012
ABPWG0.5-150-1Wormwheel0.5115042.512
ABPWG0.5-160-1Wormwheel0.511604512
ABPWG0.5-170-1Wormwheel0.5117047.512
ABPWG0.5-180-1Wormwheel0.511805014
ABPWG0.5-190-1Wormwheel0.5119052.514
ABPWG0.5-200-1Wormwheel0.512005514
ABPWG0.5-210-1Wormwheel0.5121057.514
ABPWG0.5-220-1Wormwheel0.512206016
ABPWG0.5-230-1Wormwheel0.5123062.516
ABPWG0.5-240-1Wormwheel0.512406516
ABPWG0.5-250-1Wormwheel0.5125067.516
ABPWG0.5-50-2Wormwheel0.525017.55
ABPWG0.5-52-2Wormwheel0.5252186
ABPWG0.5-55-2Wormwheel0.525518.756
ABPWG0.5-58-2Wormwheel0.525819.56
ABPWG0.5-60-2Wormwheel0.5260206
ABPWG0.5-62-2Wormwheel0.526220.56
ABPWG0.5-65-2Wormwheel0.526521.256
ABPWG0.5-68-2Wormwheel0.5268226
ABPWG0.5-70-2Wormwheel0.527022.56
ABPWG0.5-72-2Wormwheel0.5272236
ABPWG0.5-75-2Wormwheel0.527523.756
ABPWG0.5-78-2Wormwheel0.527824.58
ABPWG0.5-80-2Wormwheel0.5280258
ABPWG0.5-82-2Wormwheel0.528225.58
ABPWG0.5-85-2Wormwheel0.528526.258
ABPWG0.5-90-2Wormwheel0.529027.58
ABPWG0.5-95-2Wormwheel0.529528.758
ABPWG0.5-100-2Wormwheel0.52100308
ABPWG0.5-105-2Wormwheel0.5210531.2510
ABPWG0.5-110-2Wormwheel0.5211032.510
ABPWG0.5-115-2Wormwheel0.5211533.7510
ABPWG0.5-120-2Wormwheel0.521203510
ABPWG0.5-130-2Wormwheel0.5213037.510
ABPWG0.5-140-2Wormwheel0.521404012
ABPWG0.5-150-2Wormwheel0.5215042.512
ABPWG0.5-160-2Wormwheel0.521604512
ABPWG0.5-170-2Wormwheel0.5217047.512
ABPWG0.5-180-2Wormwheel0.521805014
ABPWG0.5-190-2Wormwheel0.5219052.514
ABPWG0.5-200-2Wormwheel0.522005514
ABPWG0.5-210-2Wormwheel0.5221057.514
ABPWG0.5-220-2Wormwheel0.522206016
ABPWG0.5-230-2Wormwheel0.5223062.516
ABPWG0.5-240-2Wormwheel0.522406516
ABPWG0.5-250-2Wormwheel0.5225067.516
ABPWG0.5-50-3Wormwheel0.535017.55
ABPWG0.5-52-3Wormwheel0.5352186
ABPWG0.5-55-3Wormwheel0.535518.756
ABPWG0.5-58-3Wormwheel0.535819.56
ABPWG0.5-60-3Wormwheel0.5360206
ABPWG0.5-62-3Wormwheel0.536220.56
ABPWG0.5-65-3Wormwheel0.536521.256
ABPWG0.5-68-3Wormwheel0.5368226
ABPWG0.5-70-3Wormwheel0.537022.56
ABPWG0.5-72-3Wormwheel0.5372236
ABPWG0.5-75-3Wormwheel0.537523.756
ABPWG0.5-78-3Wormwheel0.537824.58
ABPWG0.5-80-3Wormwheel0.5380258
ABPWG0.5-82-3Wormwheel0.538225.58
ABPWG0.5-85-3Wormwheel0.538526.258
ABPWG0.5-90-3Wormwheel0.539027.58
ABPWG0.5-95-3Wormwheel0.539528.758
ABPWG0.5-100-3Wormwheel0.53100308
ABPWG0.5-105-3Wormwheel0.5310531.2510
ABPWG0.5-110-3Wormwheel0.5311032.510
ABPWG0.5-115-3Wormwheel0.5311533.7510
ABPWG0.5-120-3Wormwheel0.531203510
ABPWG0.5-130-3Wormwheel0.5313037.510
ABPWG0.5-140-3Wormwheel0.531404012
ABPWG0.5-150-3Wormwheel0.5315042.512
ABPWG0.5-160-3Wormwheel0.531604512
ABPWG0.5-170-3Wormwheel0.5317047.512
ABPWG0.5-180-3Wormwheel0.531805014
ABPWG0.5-190-3Wormwheel0.5319052.514
ABPWG0.5-200-3Wormwheel0.532005514
ABPWG0.5-210-3Wormwheel0.5321057.514
ABPWG0.5-220-3Wormwheel0.532206016
ABPWG0.5-230-3Wormwheel0.5323062.516
ABPWG0.5-240-3Wormwheel0.532406516
ABPWG0.5-250-3Wormwheel0.5325067.516
ABPWG0.5-50-4Wormwheel0.545017.55
ABPWG0.5-52-4Wormwheel0.5452186
ABPWG0.5-55-4Wormwheel0.545518.756
ABPWG0.5-58-4Wormwheel0.545819.56
ABPWG0.5-60-4Wormwheel0.5460206
ABPWG0.5-62-4Wormwheel0.546220.56
ABPWG0.5-65-4Wormwheel0.546521.256
ABPWG0.5-68-4Wormwheel0.5468226
ABPWG0.5-70-4Wormwheel0.547022.56
ABPWG0.5-72-4Wormwheel0.5472236
ABPWG0.5-75-4Wormwheel0.547523.756
ABPWG0.5-78-4Wormwheel0.547824.58
ABPWG0.5-80-4Wormwheel0.5480258
ABPWG0.5-82-4Wormwheel0.548225.58
ABPWG0.5-85-4Wormwheel0.548526.258
ABPWG0.5-90-4Wormwheel0.549027.58
ABPWG0.5-95-4Wormwheel0.549528.758
ABPWG0.5-100-4Wormwheel0.54100308
ABPWG0.5-105-4Wormwheel0.5410531.2510
ABPWG0.5-110-4Wormwheel0.5411032.510
ABPWG0.5-115-4Wormwheel0.5411533.7510
ABPWG0.5-120-4Wormwheel0.541203510
ABPWG0.5-130-4Wormwheel0.5413037.510
ABPWG0.5-140-4Wormwheel0.541404012
ABPWG0.5-150-4Wormwheel0.5415042.512
ABPWG0.5-160-4Wormwheel0.541604512
ABPWG0.5-170-4Wormwheel0.5417047.512
ABPWG0.5-180-4Wormwheel0.541805014
ABPWG0.5-190-4Wormwheel0.5419052.514
ABPWG0.5-200-4Wormwheel0.542005514
ABPWG0.5-210-4Wormwheel0.5421057.514
ABPWG0.5-220-4Wormwheel0.542206016
ABPWG0.5-230-4Wormwheel0.5423062.516
ABPWG0.5-240-4Wormwheel0.542406516
ABPWG0.5-250-4Wormwheel0.5425067.516
ABPWG1.0-38-1Wormwheel1.013826.58
ABPWG1.0-40-1Wormwheel1.014027.58
ABPWG1.0-42-1Wormwheel1.014228.58
ABPWG1.0-45-1Wormwheel1.0145308
ABPWG1.0-48-1Wormwheel1.014831.58
ABPWG1.0-50-1Wormwheel1.015032.58
ABPWG1.0-52-1Wormwheel1.015233.58
ABPWG1.0-55-1Wormwheel1.0155358
ABPWG1.0-58-1Wormwheel1.015836.510
ABPWG1.0-60-1Wormwheel1.016037.510
ABPWG1.0-62-1Wormwheel1.016238.510
ABPWG1.0-65-1Wormwheel1.01654010
ABPWG1.0-68-1Wormwheel1.016841.510
ABPWG1.0-70-1Wormwheel1.017042.510
ABPWG1.0-72-1Wormwheel1.017243.510
ABPWG1.0-75-1Wormwheel1.01754510
ABPWG1.0-78-1Wormwheel1.017846.512
ABPWG1.0-80-1Wormwheel1.018047.512
ABPWG1.0-82-1Wormwheel1.018248.512
ABPWG1.0-85-1Wormwheel1.01855012
ABPWG1.0-90-1Wormwheel1.019052.512
ABPWG1.0-95-1Wormwheel1.01955512
ABPWG1.0-100-1Wormwheel1.0110057.514
ABPWG1.0-105-1Wormwheel1.011056014
ABPWG1.0-110-1Wormwheel1.0111062.514
ABPWG1.0-115-1Wormwheel1.011156514
ABPWG1.0-120-1Wormwheel1.0112067.514
ABPWG1.0-125-1Wormwheel1.011257014
ABPWG1.0-38-2Wormwheel1.023826.58
ABPWG1.0-40-2Wormwheel1.024027.58
ABPWG1.0-42-2Wormwheel1.024228.58
ABPWG1.0-45-2Wormwheel1.0245308
ABPWG1.0-48-2Wormwheel1.024831.58
ABPWG1.0-50-2Wormwheel1.025032.58
ABPWG1.0-52-2Wormwheel1.025233.58
ABPWG1.0-55-2Wormwheel1.0255358
ABPWG1.0-58-2Wormwheel1.025836.510
ABPWG1.0-60-2Wormwheel1.026037.510
ABPWG1.0-62-2Wormwheel1.026238.510
ABPWG1.0-65-2Wormwheel1.02654010
ABPWG1.0-68-2Wormwheel1.026841.510
ABPWG1.0-70-2Wormwheel1.027042.510
ABPWG1.0-72-2Wormwheel1.027243.510
ABPWG1.0-75-2Wormwheel1.02754510
ABPWG1.0-78-2Wormwheel1.027846.512
ABPWG1.0-80-2Wormwheel1.028047.512
ABPWG1.0-82-2Wormwheel1.028248.512
ABPWG1.0-85-2Wormwheel1.02855012
ABPWG1.0-90-2Wormwheel1.029052.512
ABPWG1.0-95-2Wormwheel1.02955512
ABPWG1.0-100-2Wormwheel1.0210057.514
ABPWG1.0-105-2Wormwheel1.021056014
ABPWG1.0-110-2Wormwheel1.0211062.514
ABPWG1.0-115-2Wormwheel1.021156514
ABPWG1.0-120-2Wormwheel1.0212067.514
ABPWG1.0-125-2Wormwheel1.021257014
ABPWG1.0-38-3Wormwheel1.033826.58
ABPWG1.0-40-3Wormwheel1.034027.58
ABPWG1.0-42-3Wormwheel1.034228.58
ABPWG1.0-45-3Wormwheel1.0345308
ABPWG1.0-48-3Wormwheel1.034831.58
ABPWG1.0-50-3Wormwheel1.035032.58
ABPWG1.0-52-3Wormwheel1.035233.58
ABPWG1.0-55-3Wormwheel1.0355358
ABPWG1.0-58-3Wormwheel1.035836.510
ABPWG1.0-60-3Wormwheel1.036037.510
ABPWG1.0-62-3Wormwheel1.036238.510
ABPWG1.0-65-3Wormwheel1.03654010
ABPWG1.0-68-3Wormwheel1.036841.510
ABPWG1.0-70-3Wormwheel1.037042.510
ABPWG1.0-72-3Wormwheel1.037243.510
ABPWG1.0-75-3Wormwheel1.03754510
ABPWG1.0-78-3Wormwheel1.037846.512
ABPWG1.0-80-3Wormwheel1.038047.512
ABPWG1.0-82-3Wormwheel1.038248.512
ABPWG1.0-85-3Wormwheel1.03855012
ABPWG1.0-90-3Wormwheel1.039052.512
ABPWG1.0-95-3Wormwheel1.03955512
ABPWG1.0-100-3Wormwheel1.0310057.514
ABPWG1.0-105-3Wormwheel1.031056014
ABPWG1.0-110-3Wormwheel1.0311062.514
ABPWG1.0-115-3Wormwheel1.031156514
ABPWG1.0-120-3Wormwheel1.0312067.514
ABPWG1.0-125-3Wormwheel1.031257014
ABPWG1.0-38-4Wormwheel1.043826.58
ABPWG1.0-40-4Wormwheel1.044027.58
ABPWG1.0-42-4Wormwheel1.044228.58
ABPWG1.0-45-4Wormwheel1.0445308
ABPWG1.0-48-4Wormwheel1.044831.58
ABPWG1.0-50-4Wormwheel1.045032.58
ABPWG1.0-52-4Wormwheel1.045233.58
ABPWG1.0-55-4Wormwheel1.0455358
ABPWG1.0-58-4Wormwheel1.045836.510
ABPWG1.0-60-4Wormwheel1.046037.510
ABPWG1.0-62-4Wormwheel1.046238.510
ABPWG1.0-65-4Wormwheel1.04654010
ABPWG1.0-68-4Wormwheel1.046841.510
ABPWG1.0-70-4Wormwheel1.047042.510
ABPWG1.0-72-4Wormwheel1.047243.510
ABPWG1.0-75-4Wormwheel1.04754510
ABPWG1.0-78-4Wormwheel1.047846.512
ABPWG1.0-80-4Wormwheel1.048047.512
ABPWG1.0-82-4Wormwheel1.048248.512
ABPWG1.0-85-4Wormwheel1.04855012
ABPWG1.0-90-4Wormwheel1.049052.512
ABPWG1.0-95-4Wormwheel1.04955512
ABPWG1.0-100-4Wormwheel1.0410057.514
ABPWG1.0-105-4Wormwheel1.041056014
ABPWG1.0-110-4Wormwheel1.0411062.514
ABPWG1.0-115-4Wormwheel1.041156514
ABPWG1.0-120-4Wormwheel1.0412067.514
ABPWG1.0-125-4Wormwheel1.041257014
ABPWG1.5-28-1Wormwheel1.5128318
ABPWG1.5-29-1Wormwheel1.512931.758
ABPWG1.5-30-1Wormwheel1.513032.58
ABPWG1.5-32-1Wormwheel1.5132348
ABPWG1.5-35-1Wormwheel1.513536.258
ABPWG1.5-38-1Wormwheel1.513838.58
ABPWG1.5-40-1Wormwheel1.5140408
ABPWG1.5-42-1Wormwheel1.514241.510
ABPWG1.5-45-1Wormwheel1.514543.7510
ABPWG1.5-48-1Wormwheel1.51484610
ABPWG1.5-50-1Wormwheel1.515047.510
ABPWG1.5-52-1Wormwheel1.51524910
ABPWG1.5-55-1Wormwheel1.515551.2512
ABPWG1.5-58-1Wormwheel1.515853.512
ABPWG1.5-60-1Wormwheel1.51605512
ABPWG1.5-62-1Wormwheel1.516256.512
ABPWG1.5-65-1Wormwheel1.516558.7512
ABPWG1.5-68-1Wormwheel1.51686114
ABPWG1.5-70-1Wormwheel1.517062.514
ABPWG1.5-72-1Wormwheel1.51726414
ABPWG1.5-75-1Wormwheel1.517566.2514
ABPWG1.5-78-1Wormwheel1.517868.514
ABPWG1.5-80-1Wormwheel1.51807014
ABPWG1.5-82-1Wormwheel1.518271.516
ABPWG1.5-28-2Wormwheel1.5228318
ABPWG1.5-29-2Wormwheel1.522931.758
ABPWG1.5-30-2Wormwheel1.523032.58
ABPWG1.5-32-2Wormwheel1.5232348
ABPWG1.5-35-2Wormwheel1.523536.258
ABPWG1.5-38-2Wormwheel1.523838.58
ABPWG1.5-40-2Wormwheel1.5240408
ABPWG1.5-42-2Wormwheel1.524241.510
ABPWG1.5-45-2Wormwheel1.524543.7510
ABPWG1.5-48-2Wormwheel1.52484610
ABPWG1.5-50-2Wormwheel1.525047.510
ABPWG1.5-52-2Wormwheel1.52524910
ABPWG1.5-55-2Wormwheel1.525551.2512
ABPWG1.5-58-2Wormwheel1.525853.512
ABPWG1.5-60-2Wormwheel1.52605512
ABPWG1.5-62-2Wormwheel1.526256.512
ABPWG1.5-65-2Wormwheel1.526558.7512
ABPWG1.5-68-2Wormwheel1.52686114
ABPWG1.5-70-2Wormwheel1.527062.514
ABPWG1.5-72-2Wormwheel1.52726414
ABPWG1.5-75-2Wormwheel1.527566.2514
ABPWG1.5-78-2Wormwheel1.527868.514
ABPWG1.5-80-2Wormwheel1.52807014
ABPWG1.5-82-2Wormwheel1.528271.516
ABPWG1.5-28-3Wormwheel1.5228318
ABPWG1.5-29-3Wormwheel1.522931.758
ABPWG1.5-30-3Wormwheel1.523032.58
ABPWG1.5-32-3Wormwheel1.5232348
ABPWG1.5-35-3Wormwheel1.523536.258
ABPWG1.5-38-3Wormwheel1.523838.58
ABPWG1.5-40-3Wormwheel1.5240408
ABPWG1.5-42-3Wormwheel1.524241.510
ABPWG1.5-45-3Wormwheel1.524543.7510
ABPWG1.5-48-3Wormwheel1.52484610
ABPWG1.5-50-3Wormwheel1.525047.510
ABPWG1.5-52-3Wormwheel1.52524910
ABPWG1.5-55-3Wormwheel1.525551.2512
ABPWG1.5-58-3Wormwheel1.525853.512
ABPWG1.5-60-3Wormwheel1.52605512
ABPWG1.5-62-3Wormwheel1.526256.512
ABPWG1.5-65-3Wormwheel1.526558.7512
ABPWG1.5-68-3Wormwheel1.52686114
ABPWG1.5-70-3Wormwheel1.527062.514
ABPWG1.5-72-3Wormwheel1.52726414
ABPWG1.5-75-3Wormwheel1.527566.2514
ABPWG1.5-78-3Wormwheel1.527868.514
ABPWG1.5-80-3Wormwheel1.52807014
ABPWG1.5-82-3Wormwheel1.528271.516
ABPWG1.5-28-4Wormwheel1.5428318
ABPWG1.5-29-4Wormwheel1.542931.758
ABPWG1.5-30-4Wormwheel1.543032.58
ABPWG1.5-32-4Wormwheel1.5432348
ABPWG1.5-35-4Wormwheel1.543536.258
ABPWG1.5-38-4Wormwheel1.543838.58
ABPWG1.5-40-4Wormwheel1.5440408
ABPWG1.5-42-4Wormwheel1.544241.510
ABPWG1.5-45-4Wormwheel1.544543.7510
ABPWG1.5-48-4Wormwheel1.54484610
ABPWG1.5-50-4Wormwheel1.545047.510
ABPWG1.5-52-4Wormwheel1.54524910
ABPWG1.5-55-4Wormwheel1.545551.2512
ABPWG1.5-58-4Wormwheel1.545853.512
ABPWG1.5-60-4Wormwheel1.54605512
ABPWG1.5-62-4Wormwheel1.546256.512
ABPWG1.5-65-4Wormwheel1.546558.7512
ABPWG1.5-68-4Wormwheel1.54686114
ABPWG1.5-70-4Wormwheel1.547062.514
ABPWG1.5-72-4Wormwheel1.54726414
ABPWG1.5-75-4Wormwheel1.547566.2514
ABPWG1.5-78-4Wormwheel1.547868.514
ABPWG1.5-80-4Wormwheel1.54807014
ABPWG1.5-82-4Wormwheel1.548271.516
ABPWG2.0-38-1Wormwheel2.013850.512
ABPWG2.0-40-1Wormwheel2.014052.512
ABPWG2.0-42-1Wormwheel2.014254.512
ABPWG2.0-45-1Wormwheel2.014557.512
ABPWG2.0-48-1Wormwheel2.014860.512
ABPWG2.0-50-1Wormwheel2.015062.516
ABPWG2.0-52-1Wormwheel2.015264.516
ABPWG2.0-55-1Wormwheel2.015567.516
ABPWG2.0-58-1Wormwheel2.015870.516
ABPWG2.0-60-1Wormwheel2.016072.516
ABPWG2.0-62-1Wormwheel2.016274.516
ABPWG2.0-38-2Wormwheel2.023850.512
ABPWG2.0-40-2Wormwheel2.024052.512
ABPWG2.0-42-2Wormwheel2.024254.512
ABPWG2.0-45-2Wormwheel2.024557.512
ABPWG2.0-48-2Wormwheel2.024860.512
ABPWG2.0-50-2Wormwheel2.025062.516
ABPWG2.0-52-2Wormwheel2.025264.516
ABPWG2.0-55-2Wormwheel2.025567.516
ABPWG2.0-58-2Wormwheel2.025870.516
ABPWG2.0-60-2Wormwheel2.026072.516
ABPWG2.0-62-2Wormwheel2.026274.516
ABPWG2.0-38-3Wormwheel2.033850.512
ABPWG2.0-40-3Wormwheel2.034052.512
ABPWG2.0-42-3Wormwheel2.034254.512
ABPWG2.0-45-3Wormwheel2.034557.512
ABPWG2.0-48-3Wormwheel2.034860.512
ABPWG2.0-50-3Wormwheel2.035062.516
ABPWG2.0-52-3Wormwheel2.035264.516
ABPWG2.0-55-3Wormwheel2.035567.516
ABPWG2.0-58-3Wormwheel2.035870.516
ABPWG2.0-60-3Wormwheel2.036072.516
ABPWG2.0-62-3Wormwheel2.036274.516
ABPWG2.0-38-4Wormwheel2.043850.512
ABPWG2.0-40-4Wormwheel2.044052.512
ABPWG2.0-42-4Wormwheel2.044254.512
ABPWG2.0-45-4Wormwheel2.044557.512
ABPWG2.0-48-4Wormwheel2.044860.512
ABPWG2.0-50-4Wormwheel2.045062.516
ABPWG2.0-52-4Wormwheel2.045264.516
ABPWG2.0-55-4Wormwheel2.045567.516
ABPWG2.0-58-4Wormwheel2.045870.516
ABPWG2.0-60-4Wormwheel2.046072.516
ABPWG2.0-62-4Wormwheel2.046274.516
ABPWG2.5-30-1Wormwheel2.51305512
ABPWG2.5-32-1Wormwheel2.513257.514
ABPWG2.5-35-1Wormwheel2.513561.2514
ABPWG2.5-38-1Wormwheel2.51386514
ABPWG2.5-40-1Wormwheel2.514067.514
ABPWG2.5-42-1Wormwheel2.51427016
ABPWG2.5-45-1Wormwheel2.514573.7516
ABPWG2.5-48-1Wormwheel2.514877.516
ABPWG2.5-50-1Wormwheel2.51508016
ABPWG2.5-30-2Wormwheel2.52305512
ABPWG2.5-32-2Wormwheel2.523257.514
ABPWG2.5-35-2Wormwheel2.523561.2514
ABPWG2.5-38-2Wormwheel2.52386514
ABPWG2.5-40-2Wormwheel2.524067.514
ABPWG2.5-42-2Wormwheel2.52427016
ABPWG2.5-45-2Wormwheel2.524573.7516
ABPWG2.5-48-2Wormwheel2.524877.516
ABPWG2.5-50-2Wormwheel2.52508016
ABPWG2.5-30-3Wormwheel2.53305512
ABPWG2.5-32-3Wormwheel2.533257.514
ABPWG2.5-35-3Wormwheel2.533561.2514
ABPWG2.5-38-3Wormwheel2.53386514
ABPWG2.5-40-3Wormwheel2.534067.514
ABPWG2.5-42-3Wormwheel2.53427016
ABPWG2.5-45-3Wormwheel2.534573.7516
ABPWG2.5-48-3Wormwheel2.534877.516
ABPWG2.5-50-3Wormwheel2.53508016
ABPWG2.5-30-4Wormwheel2.54305512
ABPWG2.5-32-4Wormwheel2.543257.514
ABPWG2.5-35-4Wormwheel2.543561.2514
ABPWG2.5-38-4Wormwheel2.54386514
ABPWG2.5-40-4Wormwheel2.544067.514
ABPWG2.5-42-4Wormwheel2.54427016
ABPWG2.5-45-4Wormwheel2.544573.7516
ABPWG2.5-48-4Wormwheel2.544877.516
ABPWG2.5-50-4Wormwheel2.54508016
ABPWG3.0-25-1Wormwheel3.012557.512
ABPWG3.0-26-1Wormwheel3.01265912
ABPWG3.0-27-1Wormwheel3.012760.512
ABPWG3.0-28-1Wormwheel3.01286212
ABPWG3.0-29-1Wormwheel3.012963.512
ABPWG3.0-30-1Wormwheel3.01306514
ABPWG3.0-32-1Wormwheel3.01326814
ABPWG3.0-35-1Wormwheel3.013572.514
ABPWG3.0-38-1Wormwheel3.01387714
ABPWG3.0-40-1Wormwheel3.01408016
ABPWG3.0-25-2Wormwheel3.022557.512
ABPWG3.0-26-2Wormwheel3.02265912
ABPWG3.0-27-2Wormwheel3.022760.512
ABPWG3.0-28-2Wormwheel3.02286212
ABPWG3.0-29-2Wormwheel3.022963.512
ABPWG3.0-30-2Wormwheel3.02306514
ABPWG3.0-32-2Wormwheel3.02326814
ABPWG3.0-35-2Wormwheel3.023572.514
ABPWG3.0-38-2Wormwheel3.02387714
ABPWG3.0-40-2Wormwheel3.02408016
ABPWG3.0-25-3Wormwheel3.032557.512
ABPWG3.0-26-3Wormwheel3.03265912
ABPWG3.0-27-3Wormwheel3.032760.512
ABPWG3.0-28-3Wormwheel3.03286212
ABPWG3.0-29-3Wormwheel3.032963.512
ABPWG3.0-30-3Wormwheel3.03306514
ABPWG3.0-32-3Wormwheel3.03326814
ABPWG3.0-35-3Wormwheel3.033572.514
ABPWG3.0-38-3Wormwheel3.03387714
ABPWG3.0-40-3Wormwheel3.03408016
ABPWG3.0-25-4Wormwheel3.042557.512
ABPWG3.0-26-4Wormwheel3.04265912
ABPWG3.0-27-4Wormwheel3.042760.512
ABPWG3.0-28-4Wormwheel3.04286212
ABPWG3.0-29-4Wormwheel3.042963.512
ABPWG3.0-30-4Wormwheel3.04306514
ABPWG3.0-32-4Wormwheel3.04326814
ABPWG3.0-35-4Wormwheel3.043572.514
ABPWG3.0-38-4Wormwheel3.04387714
ABPWG3.0-40-4Wormwheel3.04408016
;
;
