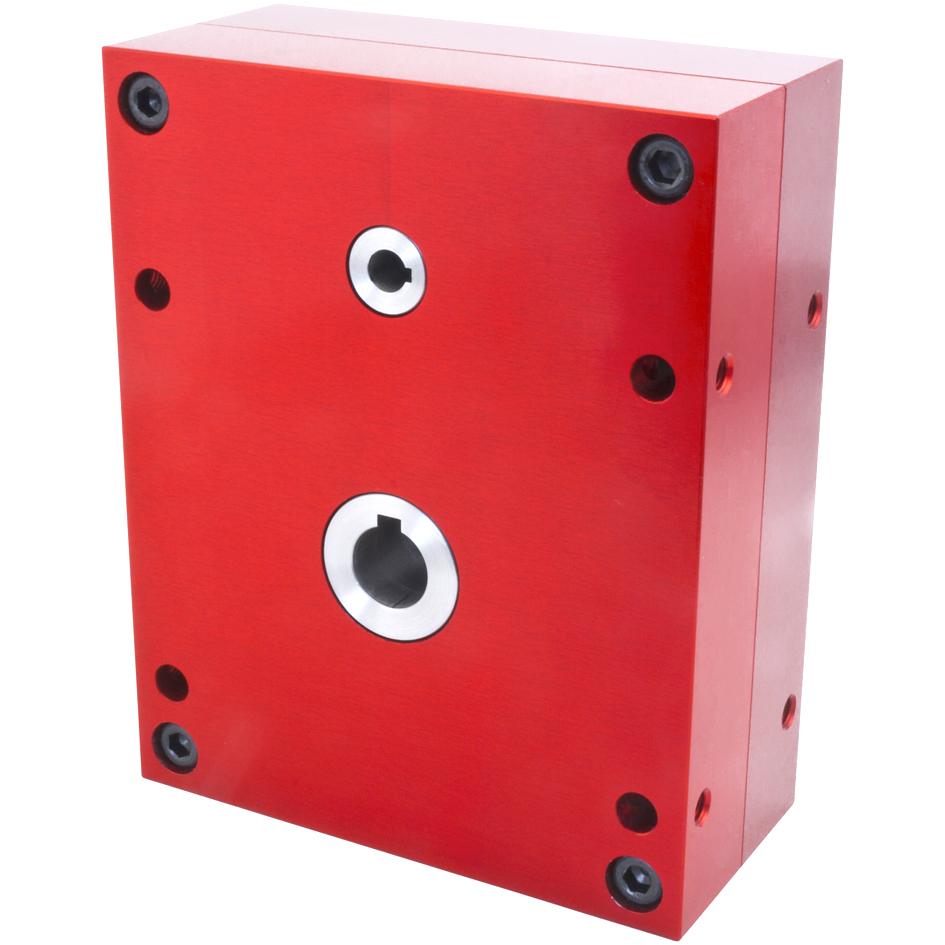

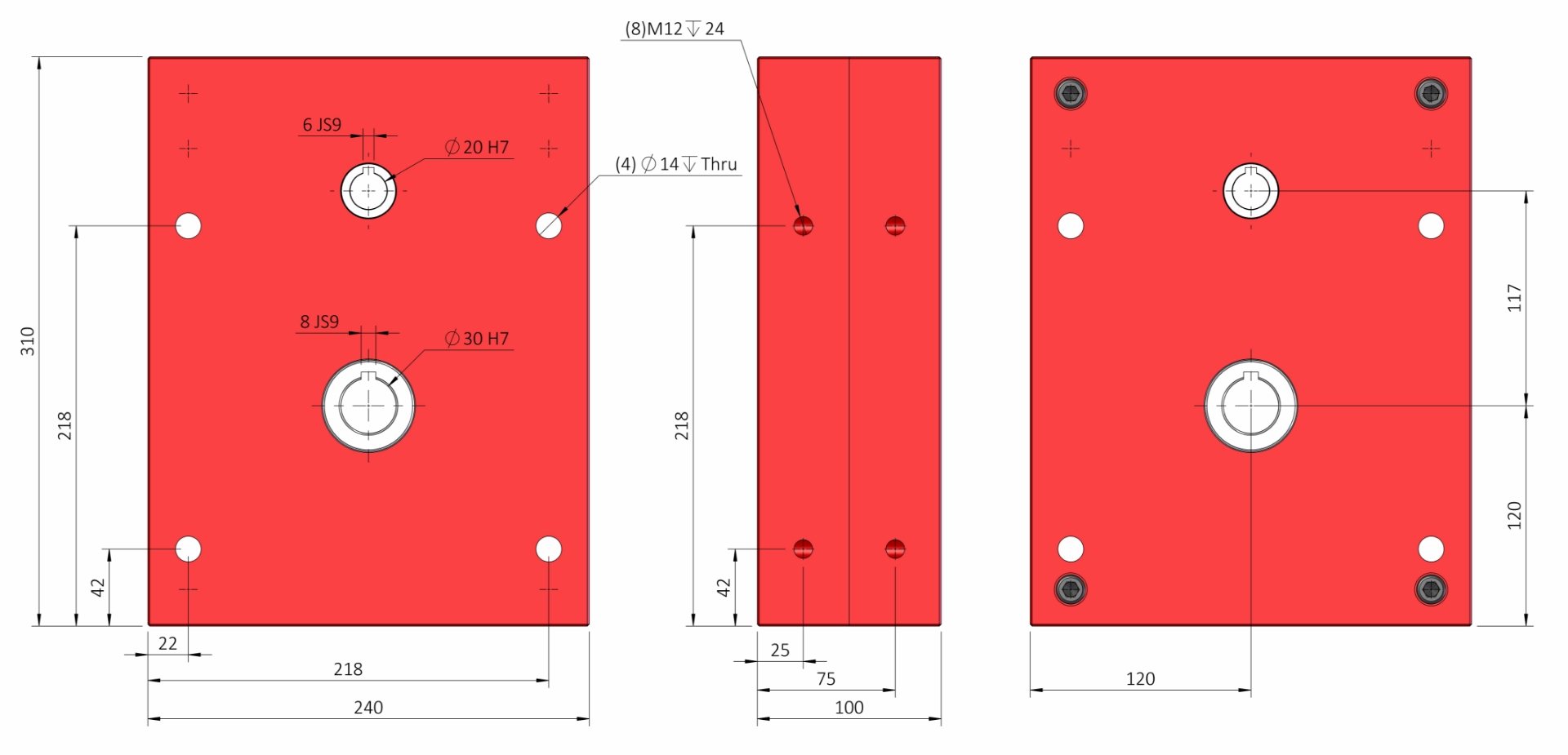

FFS50 425Nm 117mm-Centres Ø16-Ø20-Input-Bores Ø30-Output-Bore

Sku
(Part No.)
Gear Ratio [i=]
Centre Dist. [a]
Nom Output Torque T₂n [Nm]
Torque
Output Backlash j
Input Bore Ø
FFS50-2-162:1117.00180Normal≤0.5°16
FFS50-3-163:1117.00168Normal≤0.5°16
FFS50-4-164:1117.00160Normal≤0.5°16
FFS50-2-192:1117.00180Normal≤0.5°19
FFS50-3-193:1117.00168Normal≤0.5°19
FFS50-4-194:1117.00160Normal≤0.5°19
FFS50-2-202:1117.00180Normal≤0.5°20
FFS50-3-203:1117.00168Normal≤0.5°20
FFS50-4-204:1117.00160Normal≤0.5°20
FFS50-2A-162:1117.00180Normal≤0.16°16
FFS50-2AR-162:1117.00180Normal≤0.08°16
FFS50-2A-192:1117.00180Normal≤0.16°19
FFS50-2AR-192:1117.00180Normal≤0.08°19
FFS50-2A-202:1117.00180Normal≤0.16°20
FFS50-2AR-202:1117.00180Normal≤0.08°20
FFS50-3A-163:1117.00168Normal≤0.16°16
FFS50-3AR-163:1117.00168Normal≤0.08°16
FFS50-3A-193:1117.00168Normal≤0.16°19
FFS50-3AR-193:1117.00168Normal≤0.08°19
FFS50-3A-203:1117.00168Normal≤0.16°20
FFS50-3AR-203:1117.00168Normal≤0.08°20
FFS50-4A-164:1117.00160Normal≤0.16°16
FFS50-4AR-164:1117.00160Normal≤0.08°16
FFS50-4A-194:1117.00160Normal≤0.16°19
FFS50-4AR-194:1117.00160Normal≤0.08°19
FFS50-4A-204:1117.00160Normal≤0.16°20
FFS50-4AR-204:1117.00160Normal≤0.08°20
FFS50-XH-2-162:1117.00360High≤0.5°16
FFS50-XH-2-192:1117.00360High≤0.5°19
FFS50-XH-2-202:1117.00360High≤0.5°20
FFS50-XH-2A-162:1117.00360High≤0.16°16
FFS50-XH-2A-192:1117.00360High≤0.16°19
FFS50-XH-2A-202:1117.00360High≤0.16°20
FFS50-XH-2AR-162:1117.00360High≤0.08°16
FFS50-XH-2AR-192:1117.00360High≤0.08°19
FFS50-XH-2AR-202:1117.00360High≤0.08°20
FFS50-XH-3-163:1117.00336High≤0.5°16
FFS50-XH-3-193:1117.00336High≤0.5°19
FFS50-XH-3-203:1117.00336High≤0.5°20
FFS50-XH-3A-163:1117.00336High≤0.16°16
FFS50-XH-3A-193:1117.00336High≤0.16°19
FFS50-XH-3A-203:1117.00336High≤0.16°20
FFS50-XH-3AR-163:1117.00336High≤0.08°16
FFS50-XH-3AR-193:1117.00336High≤0.08°19
FFS50-XH-3AR-203:1117.00336High≤0.08°20
FFS50-XH-4-164:1117.00320High≤0.5°16
FFS50-XH-4-194:1117.00320High≤0.5°19
FFS50-XH-4-204:1117.00320High≤0.5°20
FFS50-XH-4A-164:1117.00320High≤0.16°16
FFS50-XH-4A-194:1117.00320High≤0.16°19
FFS50-XH-4A-204:1117.00320High≤0.16°20
FFS50-XH-4AR-164:1117.00320High≤0.08°16
FFS50-XH-4AR-194:1117.00320High≤0.08°19
FFS50-XH-4AR-204:1117.00320High≤0.08°20
;
;
