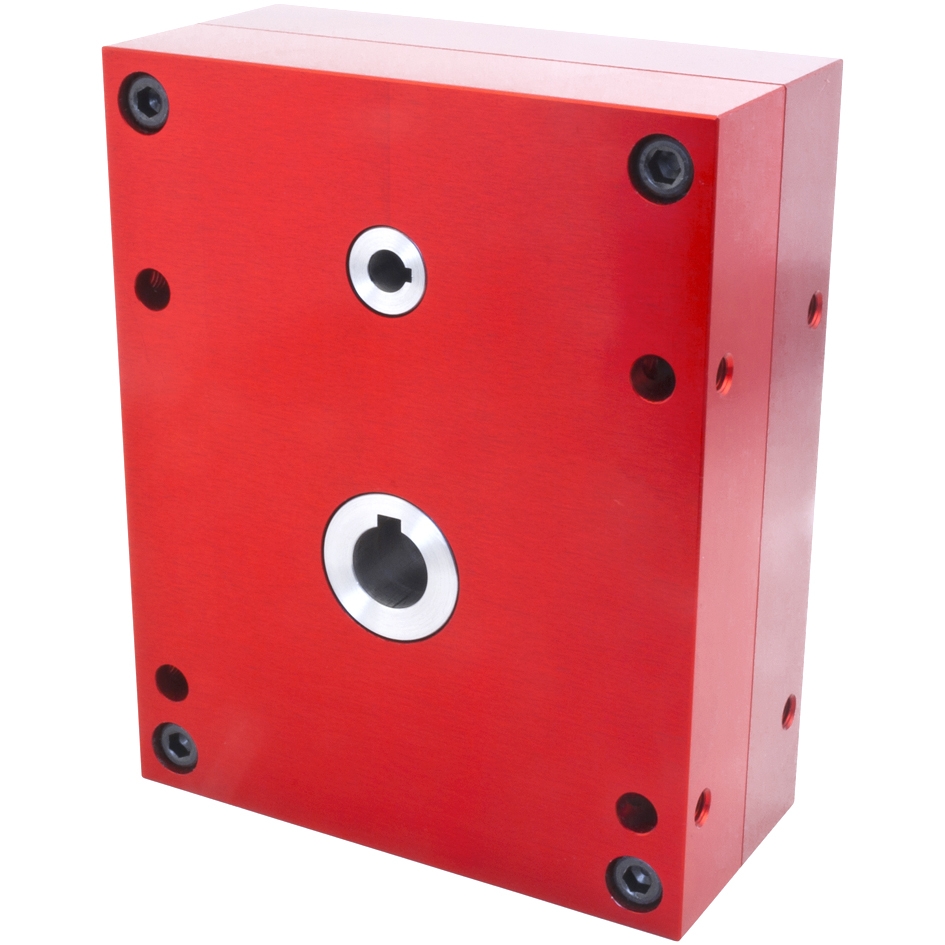

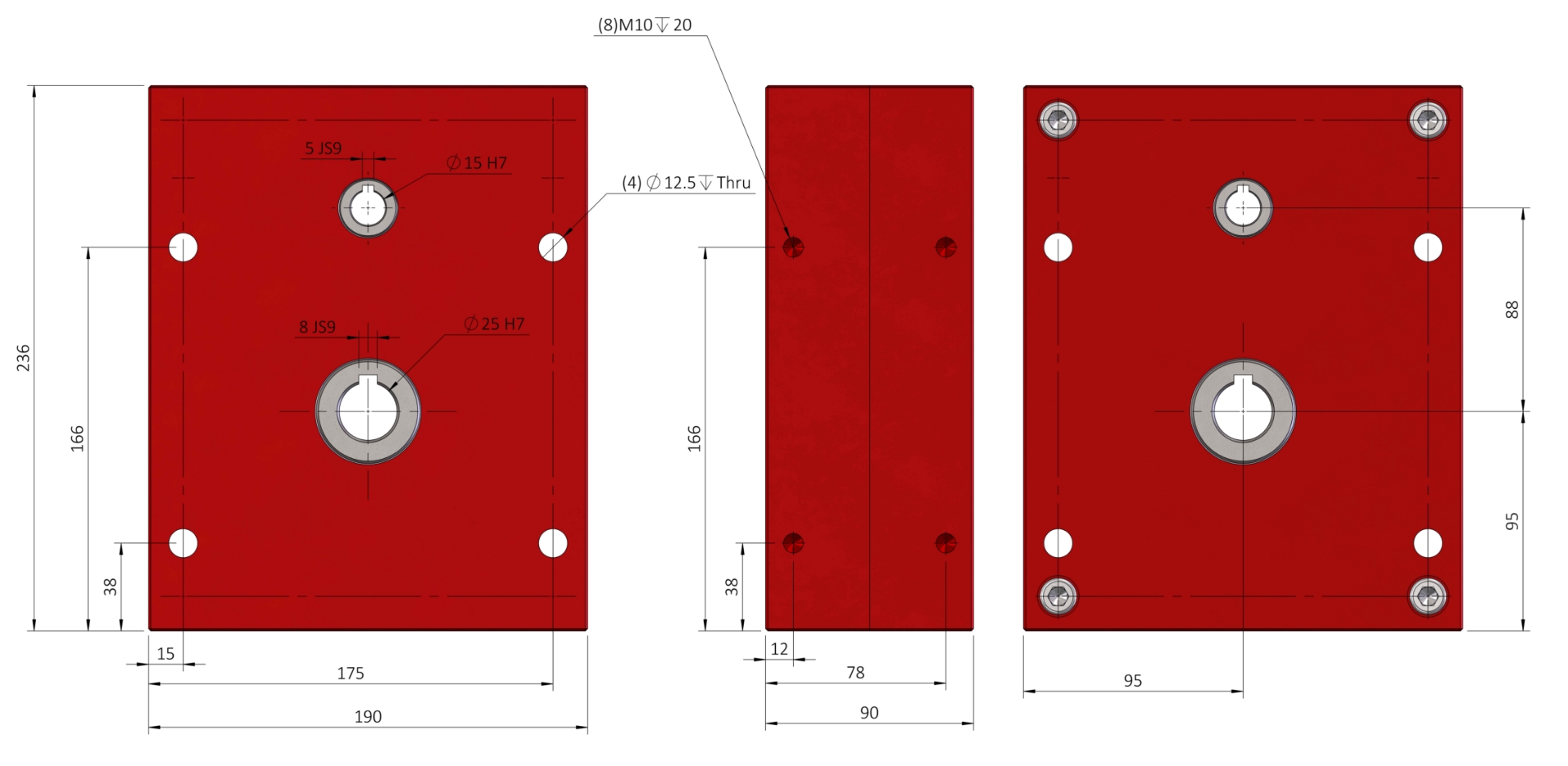

FFS40 210Nm 88mm-Centres Ø12-Ø15-Input-Bores Ø25-Output-Bore

Sku
(Part No.)
Gear Ratio [i=]
Centre Dist. [a]
Nom Output Torque T₂n [Nm]
Torque
Output Backlash j
Input Bore Ø
FFS40-2-122:188.0090Normal≤0.5°12
FFS40-3-123:188.0090Normal≤0.5°12
FFS40-4-124:188.0082Normal≤0.5°12
FFS40-2-142:188.0090Normal≤0.5°14
FFS40-3-143:188.0090Normal≤0.5°14
FFS40-4-144:188.0082Normal≤0.5°14
FFS40-2-152:188.0090Normal≤0.5°15
FFS40-3-153:188.0090Normal≤0.5°15
FFS40-4-154:188.0082Normal≤0.5°15
FFS40-2A-122:188.0090Normal≤0.16°12
FFS40-2AR-122:188.0090Normal≤0.08°12
FFS40-2A-142:188.0090Normal≤0.16°14
FFS40-2AR-142:188.0090Normal≤0.08°14
FFS40-2A-152:188.0090Normal≤0.16°15
FFS40-2AR-152:188.0090Normal≤0.08°15
FFS40-3A-123:188.0090Normal≤0.16°12
FFS40-3AR-123:188.0090Normal≤0.08°12
FFS40-3A-143:188.0090Normal≤0.16°14
FFS40-3AR-143:188.0090Normal≤0.08°14
FFS40-3A-153:188.0090Normal≤0.16°15
FFS40-3AR-153:188.0090Normal≤0.08°15
FFS40-4A-124:188.0082Normal≤0.16°12
FFS40-4AR-124:188.0082Normal≤0.08°12
FFS40-4A-144:188.0082Normal≤0.16°14
FFS40-4AR-144:188.0082Normal≤0.08°14
FFS40-4A-154:188.0082Normal≤0.16°15
FFS40-4AR-154:188.0082Normal≤0.08°15
FFS40-XH-2-122:188.00180High≤0.5°12
FFS40-XH-2-142:188.00180High≤0.5°14
FFS40-XH-2-152:188.00180High≤0.5°15
FFS40-XH-2A-122:188.00180High≤0.16°12
FFS40-XH-2A-142:188.00180High≤0.16°14
FFS40-XH-2A-152:188.00180High≤0.16°15
FFS40-XH-2AR-122:188.00180High≤0.08°12
FFS40-XH-2AR-142:188.00180High≤0.08°14
FFS40-XH-2AR-152:188.00180High≤0.08°15
FFS40-XH-3-123:188.00180High≤0.5°12
FFS40-XH-3-143:188.00180High≤0.5°14
FFS40-XH-3-153:188.00180High≤0.5°15
FFS40-XH-3A-123:188.00180High≤0.16°12
FFS40-XH-3A-143:188.00180High≤0.16°14
FFS40-XH-3A-153:188.00180High≤0.16°15
FFS40-XH-3AR-123:188.00180High≤0.08°12
FFS40-XH-3AR-143:188.00180High≤0.08°14
FFS40-XH-3AR-153:188.00180High≤0.08°15
FFS40-XH-4-124:188.00164High≤0.5°12
FFS40-XH-4-144:188.00164High≤0.5°14
FFS40-XH-4-154:188.00164High≤0.5°15
FFS40-XH-4A-124:188.00164High≤0.16°12
FFS40-XH-4A-144:188.00164High≤0.16°14
FFS40-XH-4A-154:188.00164High≤0.16°15
FFS40-XH-4AR-124:188.00164High≤0.08°12
FFS40-XH-4AR-144:188.00164High≤0.08°14
FFS40-XH-4AR-154:188.00164High≤0.08°15
;
;
