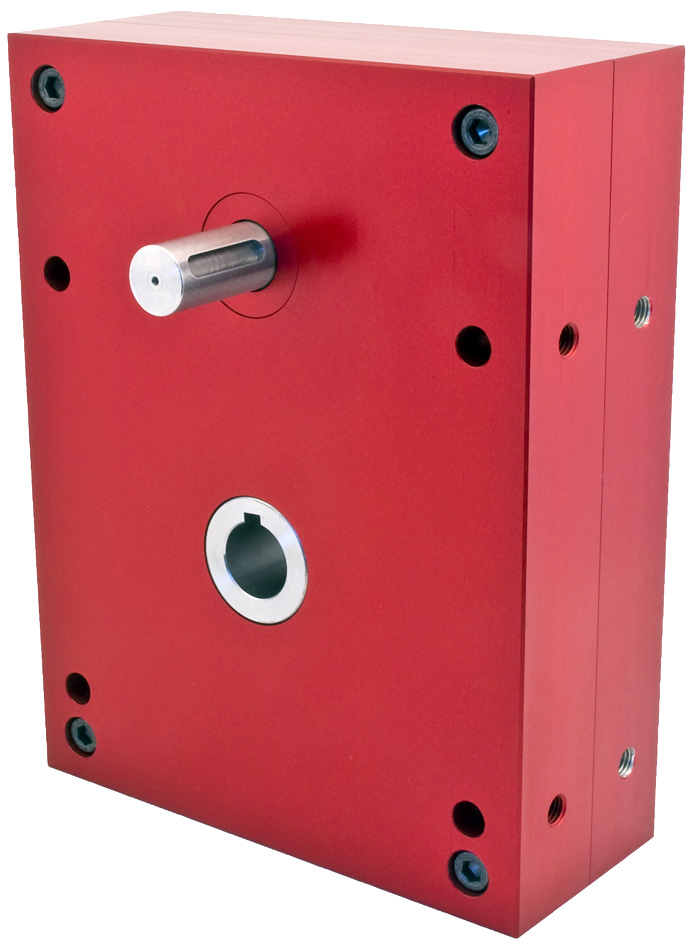

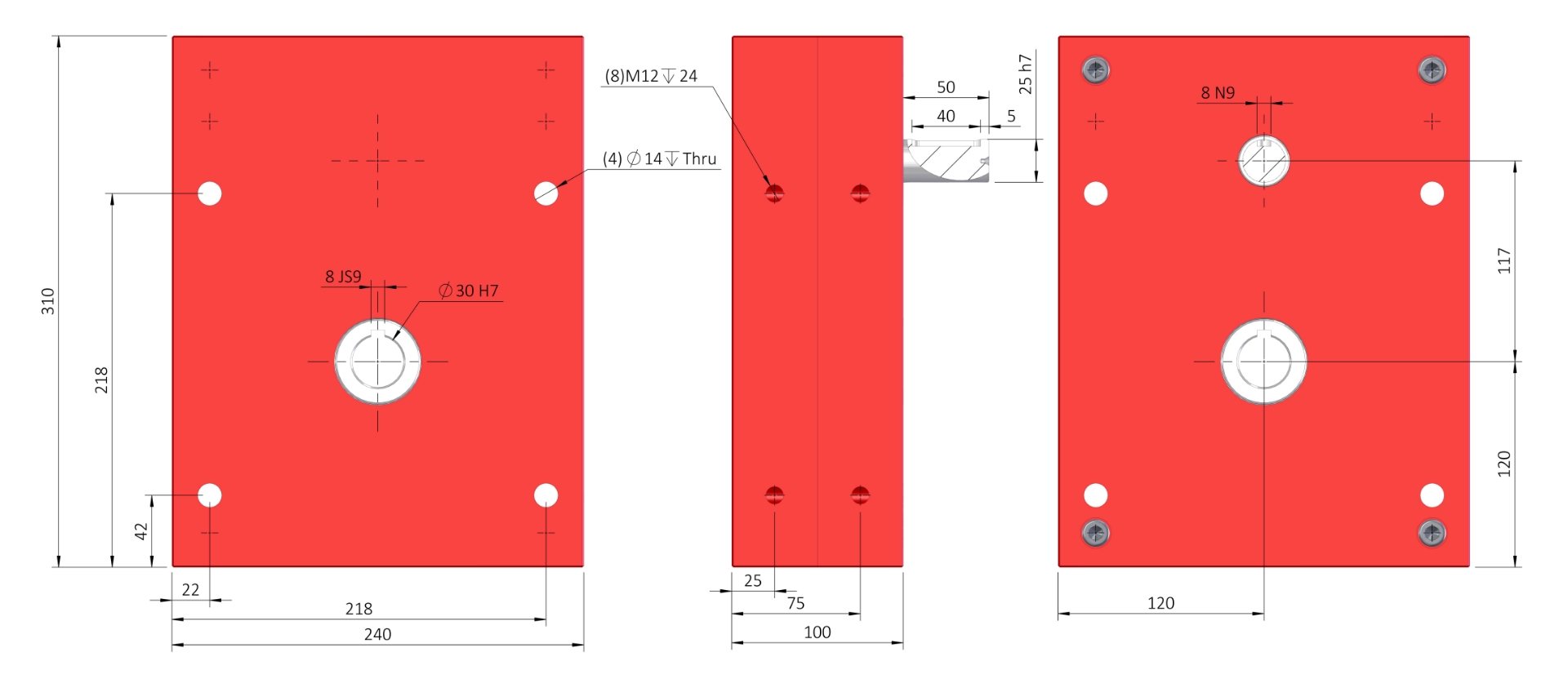

FF50 425Nm 117mm-Centres Ø25-Input-Shaft Ø30-Output-Bore

Sku
(Part No.)
Gear Ratio [i=]
Centre Dist. [a]
Nom Output Torque T₂n [Nm]
Torque
Output Backlash j
FF50-22:1117.00180Normal≤0.5°
FF50-33:1117.00168Normal≤0.5°
FF50-44:1117.00160Normal≤0.5°
FF50-55:1117.00149Normal≤0.5°
FF50-66:1117.00130Normal≤0.5°
FF50-77:1117.00120Normal≤0.5°
FF50-2A2:1117.00180Normal≤0.16°
FF50-2AR2:1117.00180Normal≤0.08°
FF50-3A3:1117.00168Normal≤0.16°
FF50-3AR3:1117.00168Normal≤0.08°
FF50-4A4:1117.00160Normal≤0.16°
FF50-4AR4:1117.00160Normal≤0.08°
FF50-5A5:1117.00149Normal≤0.16°
FF50-5AR5:1117.00149Normal≤0.08°
FF50-6A6:1117.00130Normal≤0.16°
FF50-6AR6:1117.00130Normal≤0.08°
FF50-7A7:1117.00120Normal≤0.16°
FF50-7AR7:1117.00120Normal≤0.08°
FF50-XH-22:1117.00360High≤0.5°
FF50-XH-2A2:1117.00360High≤0.16°
FF50-XH-2AR2:1117.00360High≤0.08°
FF50-XH-33:1117.00336High≤0.5°
FF50-XH-3A3:1117.00336High≤0.16°
FF50-XH-3AR3:1117.00336High≤0.08°
FF50-XH-44:1117.00320High≤0.5°
FF50-XH-4A4:1117.00320High≤0.16°
FF50-XH-4AR4:1117.00320High≤0.08°
FF50-XH-55:1117.00298High≤0.5°
FF50-XH-5A5:1117.00298High≤0.16°
FF50-XH-5AR5:1117.00298High≤0.08°
FF50-XH-66:1117.00260High≤0.5°
FF50-XH-6A6:1117.00260High≤0.16°
FF50-XH-6AR6:1117.00260High≤0.08°
FF50-XH-77:1117.00240High≤0.5°
FF50-XH-7A7:1117.00240High≤0.16°
FF50-XH-7AR7:1117.00240High≤0.08°
;
;
