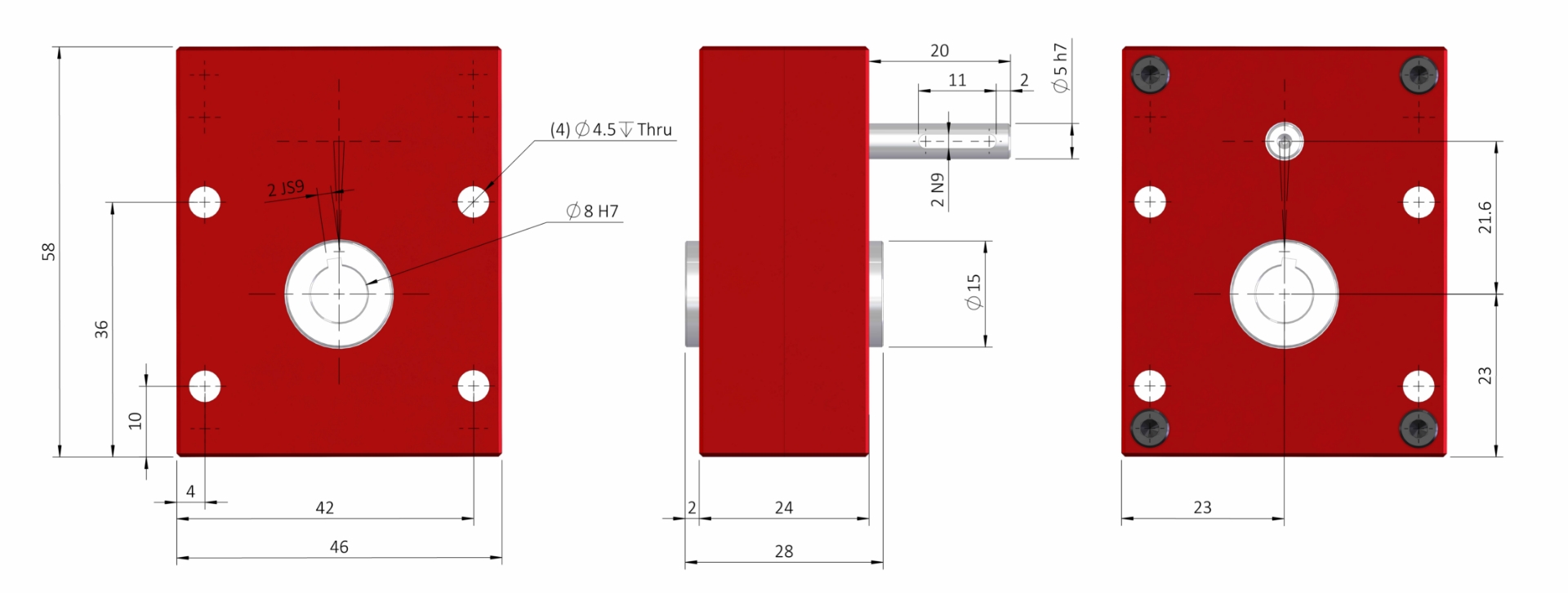

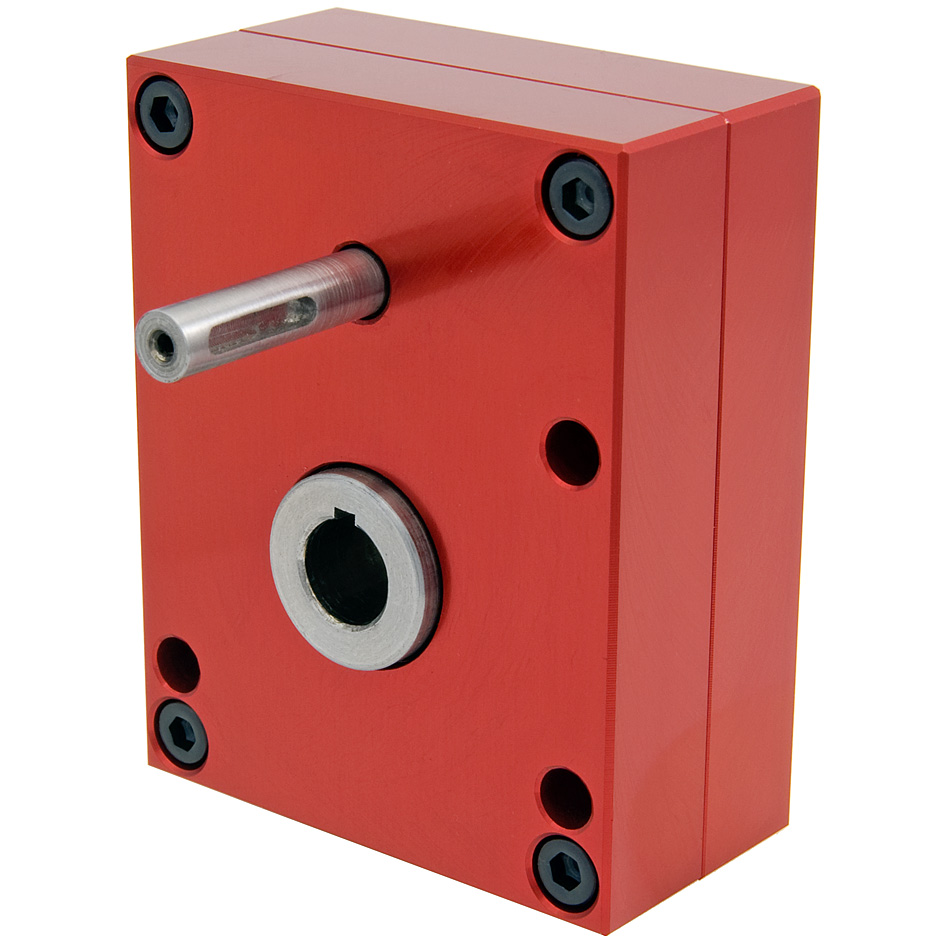

FF10 3.7Nm 21.6mm-Centres Ø5-Input-Shaft Ø8-Output-Bore

Sku
(Part No.)
Gear Ratio [i=]
Centre Dist. [a]
Nom Output Torque T₂n [Nm]
Torque
Output Backlash j
FF10-22:121.601.55Normal≤0.5°
FF10-33:121.601.49Normal≤0.5°
FF10-44:121.601.33Normal≤0.5°
FF10-55:121.601.27Normal≤0.5°
FF10-66:121.601.08Normal≤0.5°
FF10-77:121.600.90Normal≤0.5°
FF10-2A2:121.601.55Normal≤0.16°
FF10-2AR2:121.601.55Normal≤0.08°
FF10-3A3:121.601.49Normal≤0.16°
FF10-3AR3:121.601.49Normal≤0.08°
FF10-4A4:121.601.33Normal≤0.16°
FF10-4AR4:121.601.33Normal≤0.08°
FF10-5A5:121.601.27Normal≤0.16°
FF10-5AR5:121.601.27Normal≤0.08°
FF10-6A6:121.601.08Normal≤0.16°
FF10-6AR6:121.601.08Normal≤0.08°
FF10-7A7:121.600.90Normal≤0.16°
FF10-7AR7:121.600.90Normal≤0.08°
FF10-XH-22:121.603.1High≤0.5°
FF10-XH-2A2:121.603.1High≤0.16°
FF10-XH-2AR2:121.603.1High≤0.08°
FF10-XH-33:121.602.98High≤0.5°
FF10-XH-3A3:121.602.98High≤0.16°
FF10-XH-3AR3:121.602.98High≤0.08°
FF10-XH-44:121.602.66High≤0.5°
FF10-XH-4A4:121.602.66High≤0.16°
FF10-XH-4AR4:121.602.66High≤0.08°
FF10-XH-55:121.602.54High≤0.5°
FF10-XH-5A5:121.602.54High≤0.16°
FF10-XH-5AR5:121.602.54High≤0.08°
FF10-XH-66:121.602.16High≤0.5°
FF10-XH-6A6:121.602.16High≤0.16°
FF10-XH-6AR6:121.602.16High≤0.08°
FF10-XH-77:121.601.8High≤0.5°
FF10-XH-7A7:121.601.8High≤0.16°
FF10-XH-7AR7:121.601.8High≤0.08°
;
;
