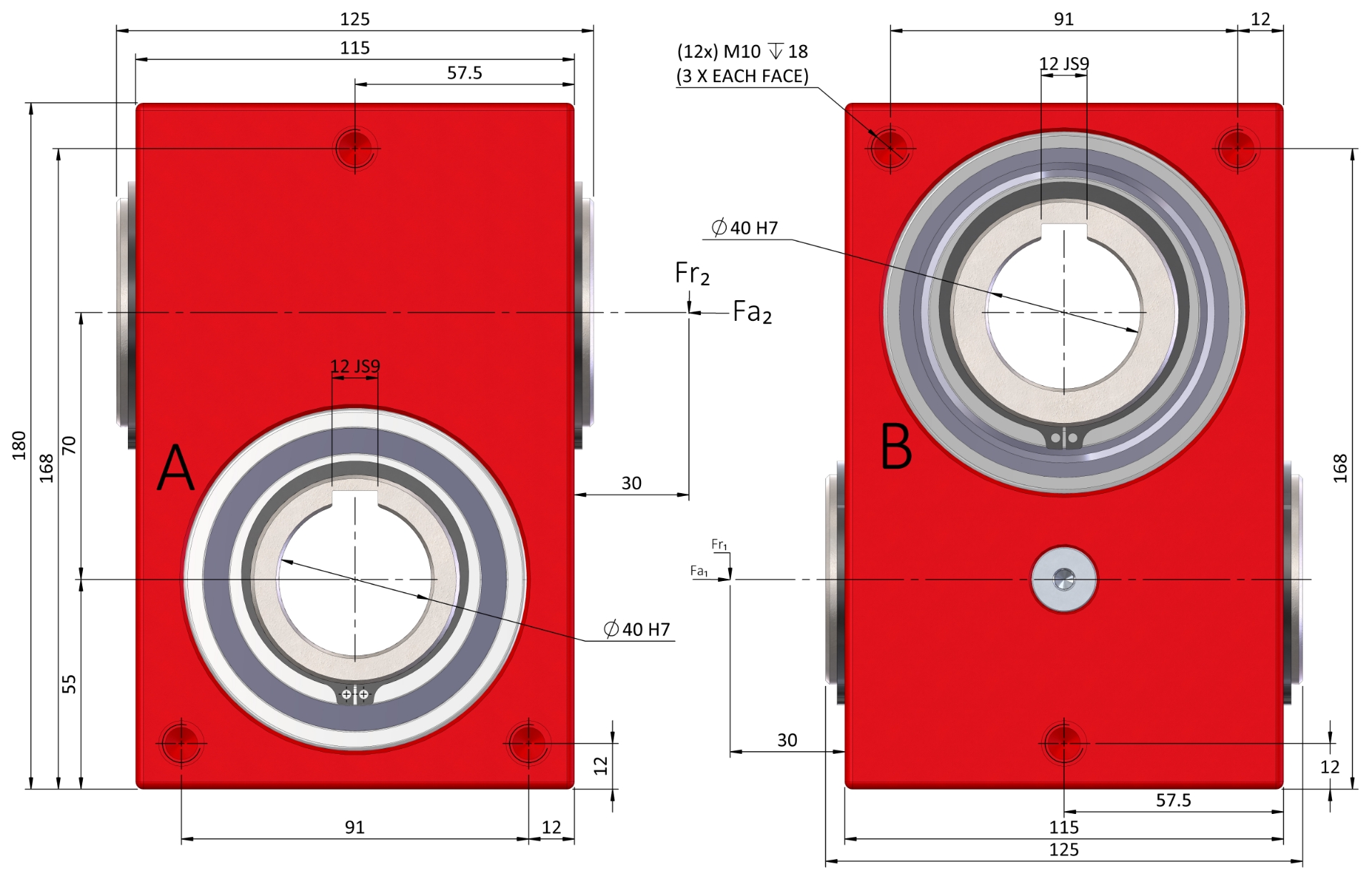

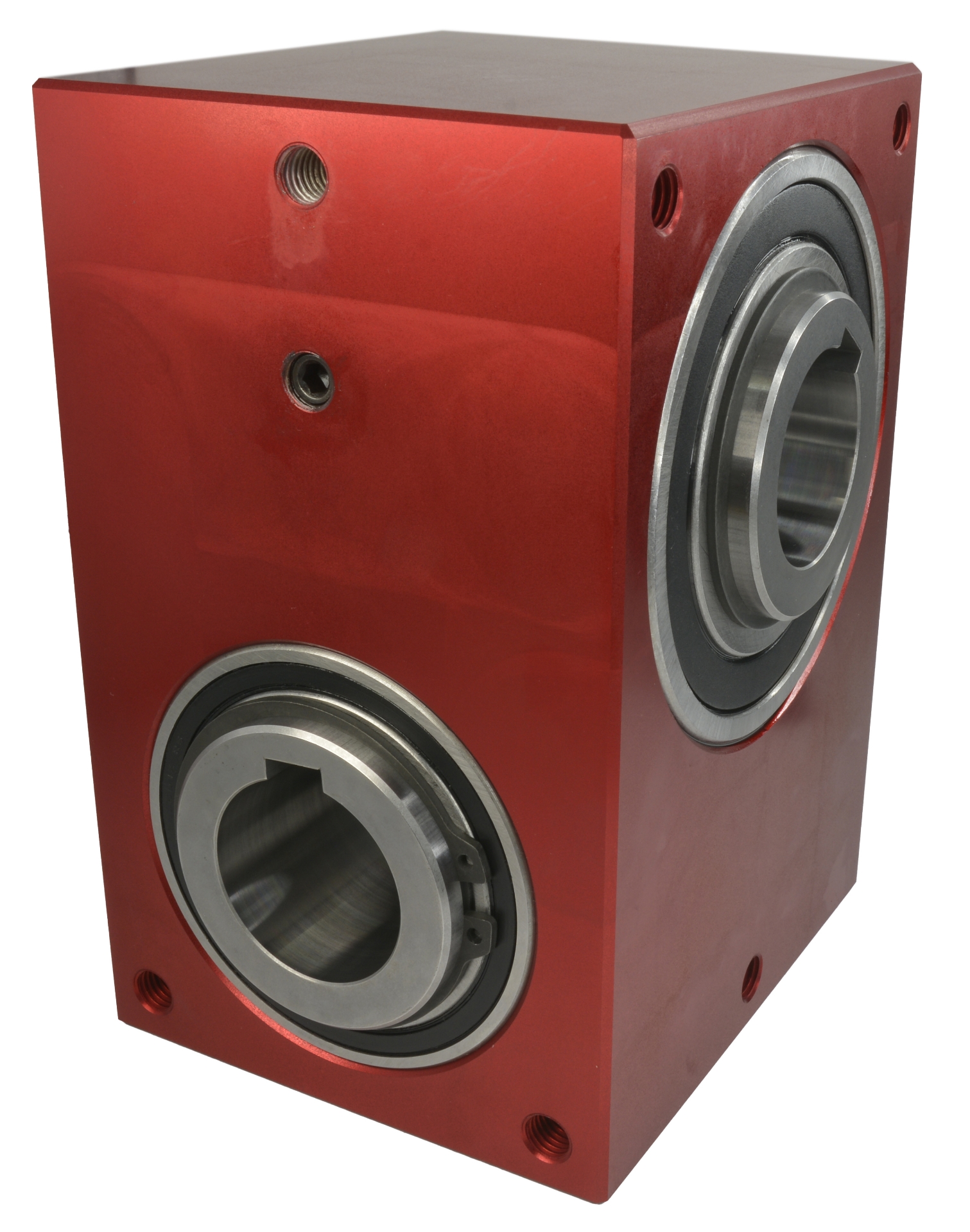

E70-RH 66Nm 70mm-Centres

Crossed Axis Helical Gearboxes

Designed and Manufactured by Ondrives at our factory in the UK.

Sku
(Part No.)
Gear Ratio [i=]
Helix Direction
Centre Dist. [a]
Output Torque T₂max [Nm]
Output Torque T₂n [Nm]
Output Backlash j
E70-11:1Right Hand70.006610.33≤0.75°
E70-22:1Right Hand70.006610.62≤0.75°
E70-33:1Right Hand70.00667.22≤0.75°
E70-1A1:1Right Hand70.006610.33≤0.5°
E70-2A2:1Right Hand70.006610.62≤0.5°
E70-3A3:1Right Hand70.00667.22≤0.5°
E70-1AR1:1Right Hand70.006610.33≤0.16°
E70-2AR2:1Right Hand70.006610.62≤0.16°
E70-3AR3:1Right Hand70.00667.22≤0.16°
;
;
