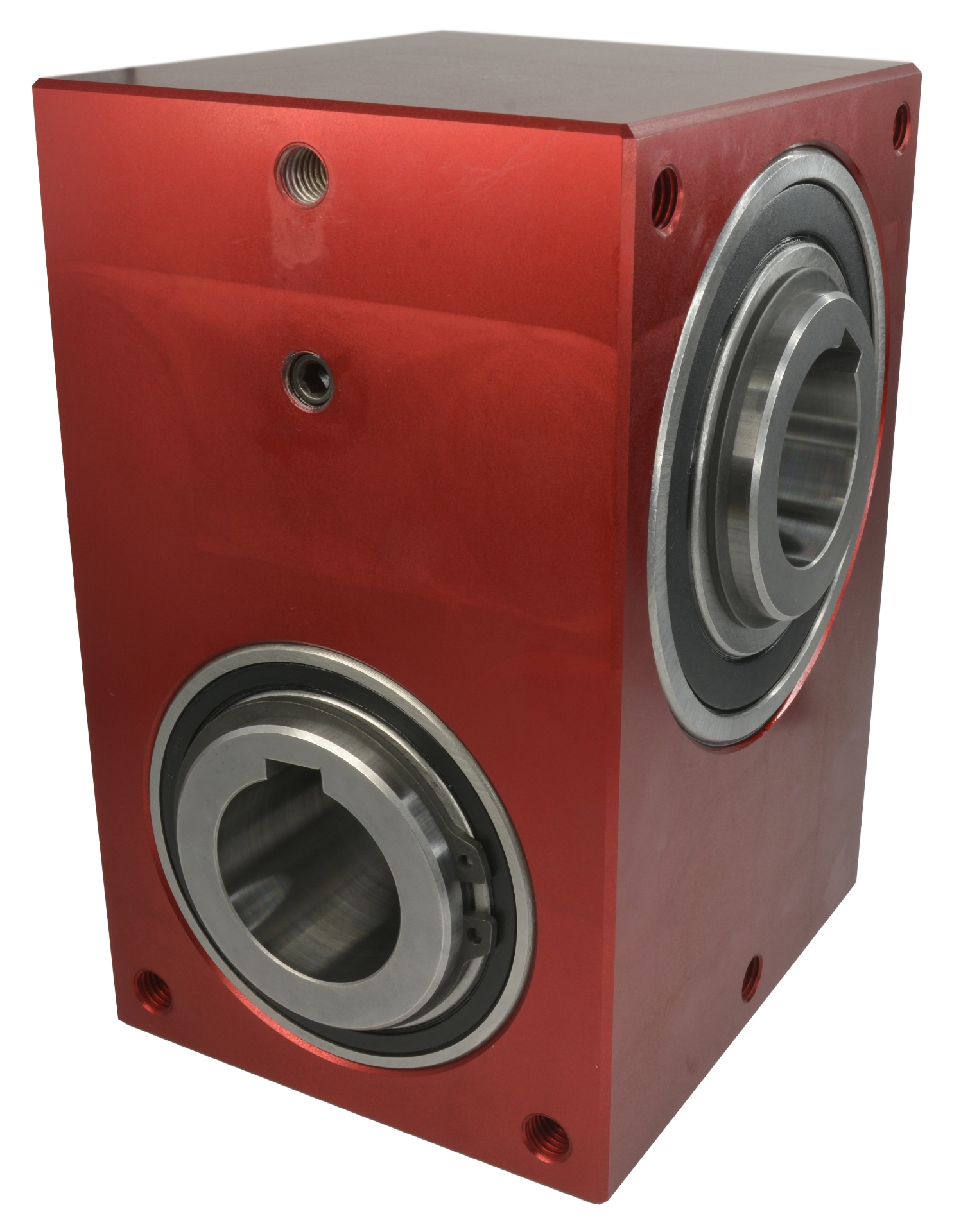

E70-LH 66Nm 70mm-Centres

Crossed Axis Helical Gearboxes

Designed and Manufactured by Ondrives at our factory in the UK.
Sku
(Part No.)
Gear Ratio [i=]
Helix Direction
Centre Dist. [a]
Output Torque T₂max [Nm]
Output Torque T₂n [Nm]
Output Backlash j
E70-1-LH1:1Left Hand70.006610.33≤0.75°
E70-1A-LH1:1Left Hand70.006610.33≤0.5°
E70-1AR-LH1:1Left Hand70.006610.33≤0.16°
E70-2-LH2:1Left Hand70.006610.62≤0.75°
E70-2A-LH2:1Left Hand70.006610.62≤0.5°
E70-2AR-LH2:1Left Hand70.006610.62≤0.16°
E70-3-LH3:1Left Hand70.00667.22≤0.75°
E70-3A-LH3:1Left Hand70.00667.22≤0.5°
E70-3AR-LH3:1Left Hand70.00667.22≤0.16°
;
;
