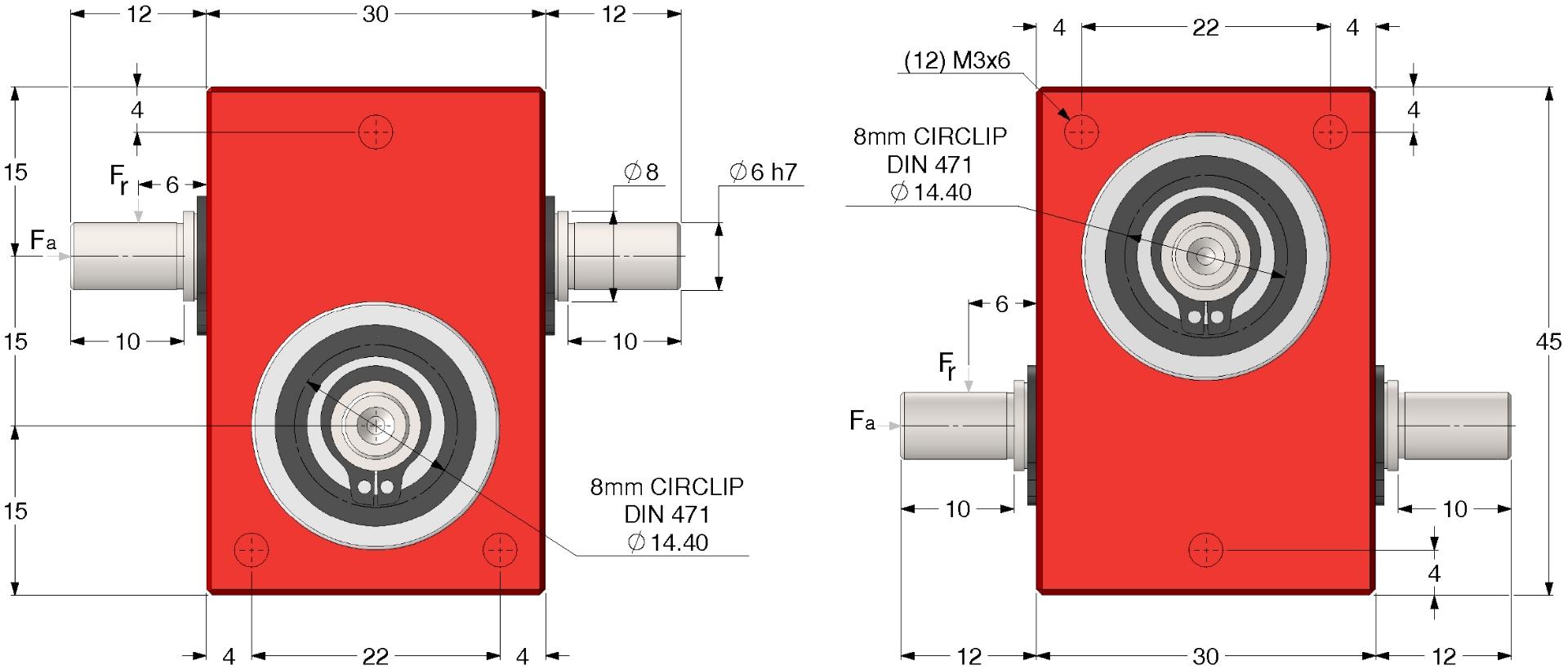

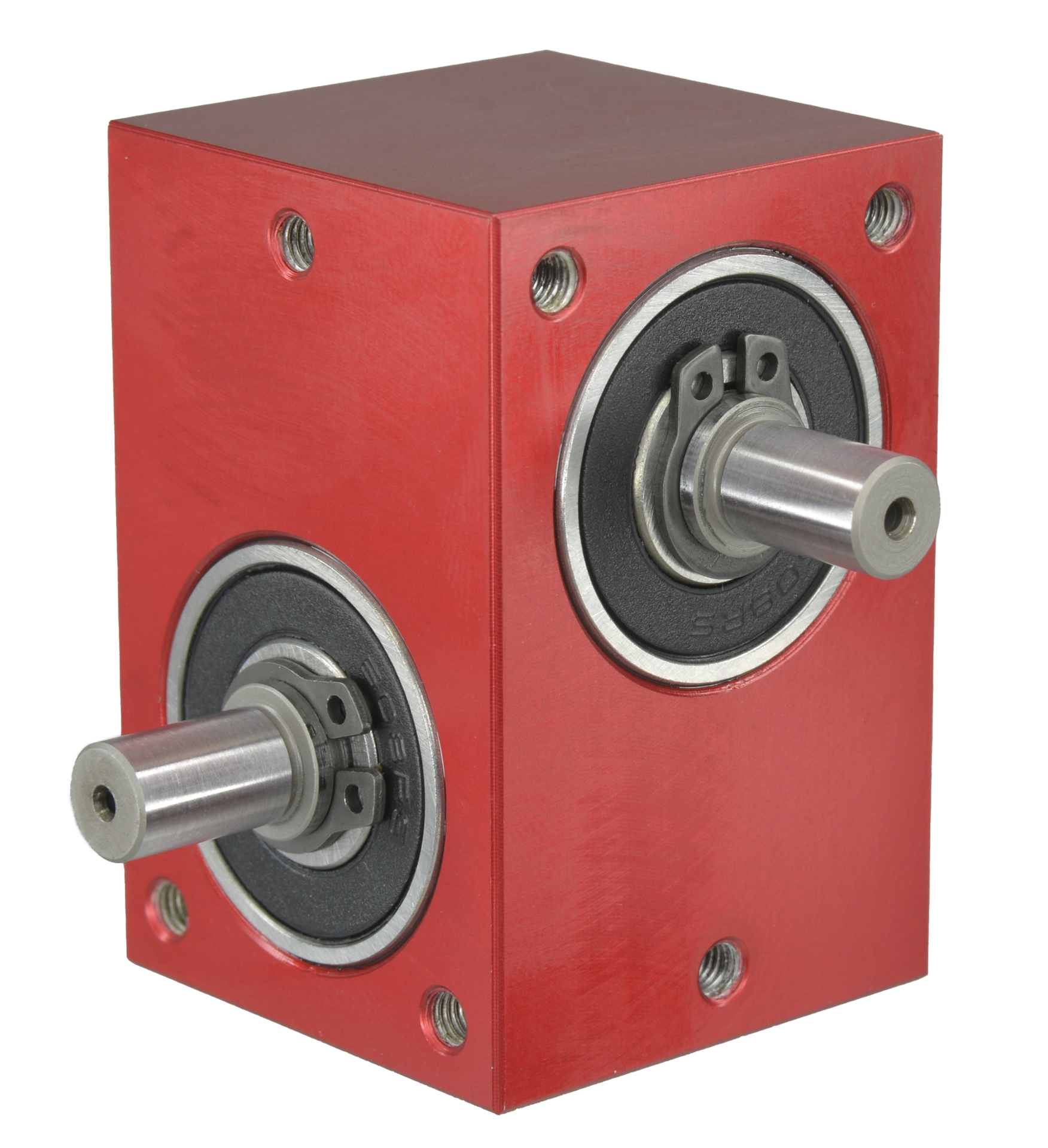

E15-RH 2.5Nm 15mm-Centres

Crossed Axis Helical Gearboxes

Designed and Manufactured by Ondrives at our factory in the UK.

Sku
(Part No.)
Gear Ratio [i=]
Helix Direction
Centre Dist. [a]
Output Torque T₂max [Nm]
Output Torque T₂n [Nm]
Output Backlash j
E15-11:1Right Hand15.001.50.66≤0.75°
E15-22:1Right Hand15.001.50.66≤0.75°
E15-33:1Right Hand15.001.50.66≤0.75°
E15-44:1Right Hand15.001.50.66≤0.75°
E15-55:1Right Hand15.001.50.66≤0.75°
E15-88:1Right Hand15.0030.86≤0.75°
E15-1010:1Right Hand15.0030.97≤0.75°
E15-2020:1Right Hand15.0031.08≤0.75°
E15-4040:1Right Hand15.0031.19≤0.75°
E15-1A1:1Right Hand15.001.50.66≤0.5°
E15-2A2:1Right Hand15.001.50.66≤0.5°
E15-3A3:1Right Hand15.001.50.66≤0.5°
E15-4A4:1Right Hand15.001.50.66≤0.5°
E15-5A5:1Right Hand15.001.50.66≤0.5°
E15-8A8:1Right Hand15.0030.86≤0.5°
E15-20A20:1Right Hand15.0031.08≤0.5°
E15-40A40:1Right Hand15.0031.19≤0.5°
E15-10AR10:1Right Hand15.0030.97≤0.16°
E15-1AR1:1Right Hand15.001.50.66≤0.16°
E15-20AR20:1Right Hand15.0031.08≤0.16°
E15-2AR2:1Right Hand15.001.50.66≤0.16°
E15-3AR3:1Right Hand15.001.50.66≤0.16°
E15-40AR40:1Right Hand15.001.51.19≤0.16°
E15-4AR4:1Right Hand15.001.50.66≤0.16°
E15-5AR5:1Right Hand15.001.50.66≤0.16°
E15-8AR8:1Right Hand15.0030.86≤0.16°
E15-10A10:1Right Hand15.0030.97≤0.5°
;
;
