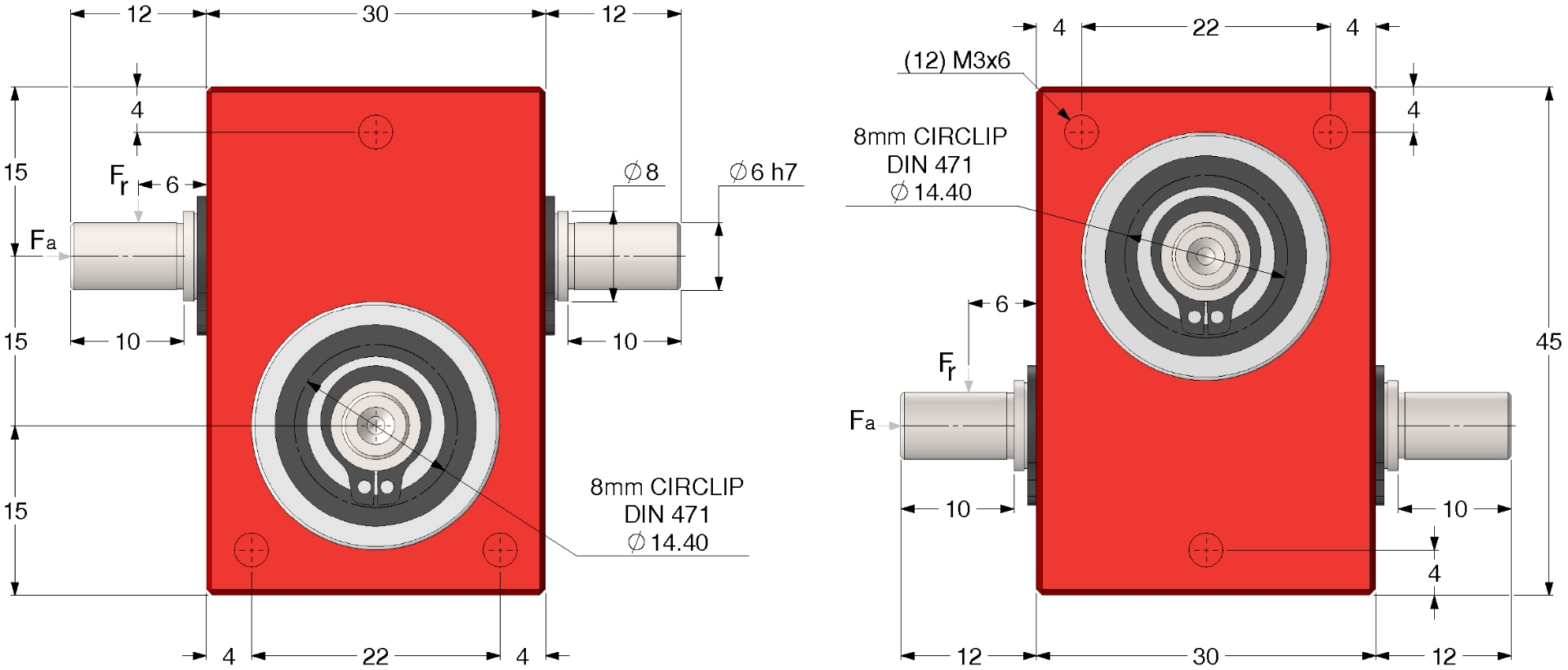

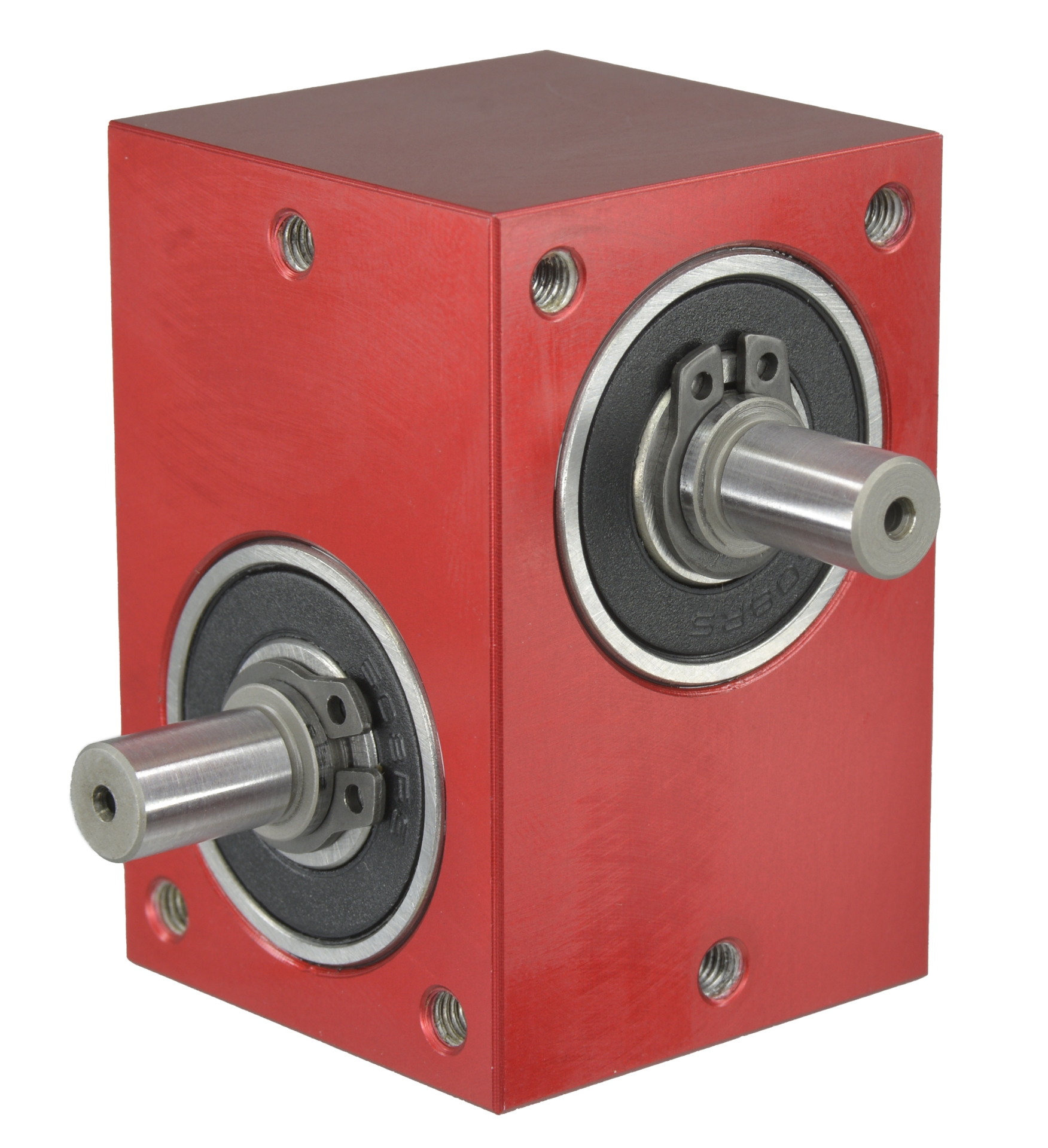

E15-LH 2.5Nm 15mm-Centres

Crossed Axis Helical Gearboxes

Designed and Manufactured by Ondrives at our factory in the UK.

Sku
(Part No.)
Gear Ratio [i=]
Helix Direction
Centre Dist. [a]
Output Torque T₂max [Nm]
Output Torque T₂n [Nm]
Output Backlash j
E15-10A-LH10:1Left Hand15.0030.97≤0.5°
E15-10AR-LH10:1Left Hand15.0030.97≤0.16°
E15-1A-LH1:1Left Hand15.001.50.66≤0.5°
E15-1AR-LH1:1Left Hand15.001.50.66≤0.16°
E15-20A-LH20:1Left Hand15.0031.08≤0.5°
E15-20AR-LH20:1Left Hand15.0031.08≤0.16°
E15-2A-LH2:1Left Hand15.001.50.66≤0.5°
E15-3A-LH3:1Left Hand15.001.50.66≤0.5°
E15-3AR-LH3:1Left Hand15.001.50.66≤0.16°
E15-40A-LH40:1Left Hand15.0031.19≤0.5°
E15-40AR-LH40:1Left Hand15.0031.19≤0.16°
E15-4A-LH4:1Left Hand15.001.50.66≤0.5°
E15-4AR-LH4:1Left Hand15.001.50.66≤0.16°
E15-5A-LH5:1Left Hand15.001.50.66≤0.5°
E15-5AR-LH5:1Left Hand15.001.50.66≤0.16°
E15-8A-LH8:1Left Hand15.0030.86≤0.5°
E15-8AR-LH8:1Left Hand15.0030.86≤0.16°
E15-2AR-LH2:1Left Hand15.001.50.66≤0.16°
E15-1-LH1:1Left Hand15.001.50.66≤0.75°
E15-2-LH2:1Left Hand15.001.50.66≤0.75°
E15-3-LH3:1Left Hand15.001.50.66≤0.75°
E15-4-LH4:1Left Hand15.001.50.66≤0.75°
E15-5-LH5:1Left Hand15.001.50.66≤0.75°
E15-8-LH8:1Left Hand15.0030.86≤0.75°
E15-10-LH10:1Left Hand15.0030.97≤0.75°
E15-20-LH20:1Left Hand15.0031.08≤0.75°
E15-40-LH40:1Left Hand15.0031.19≤0.75°
;
;
