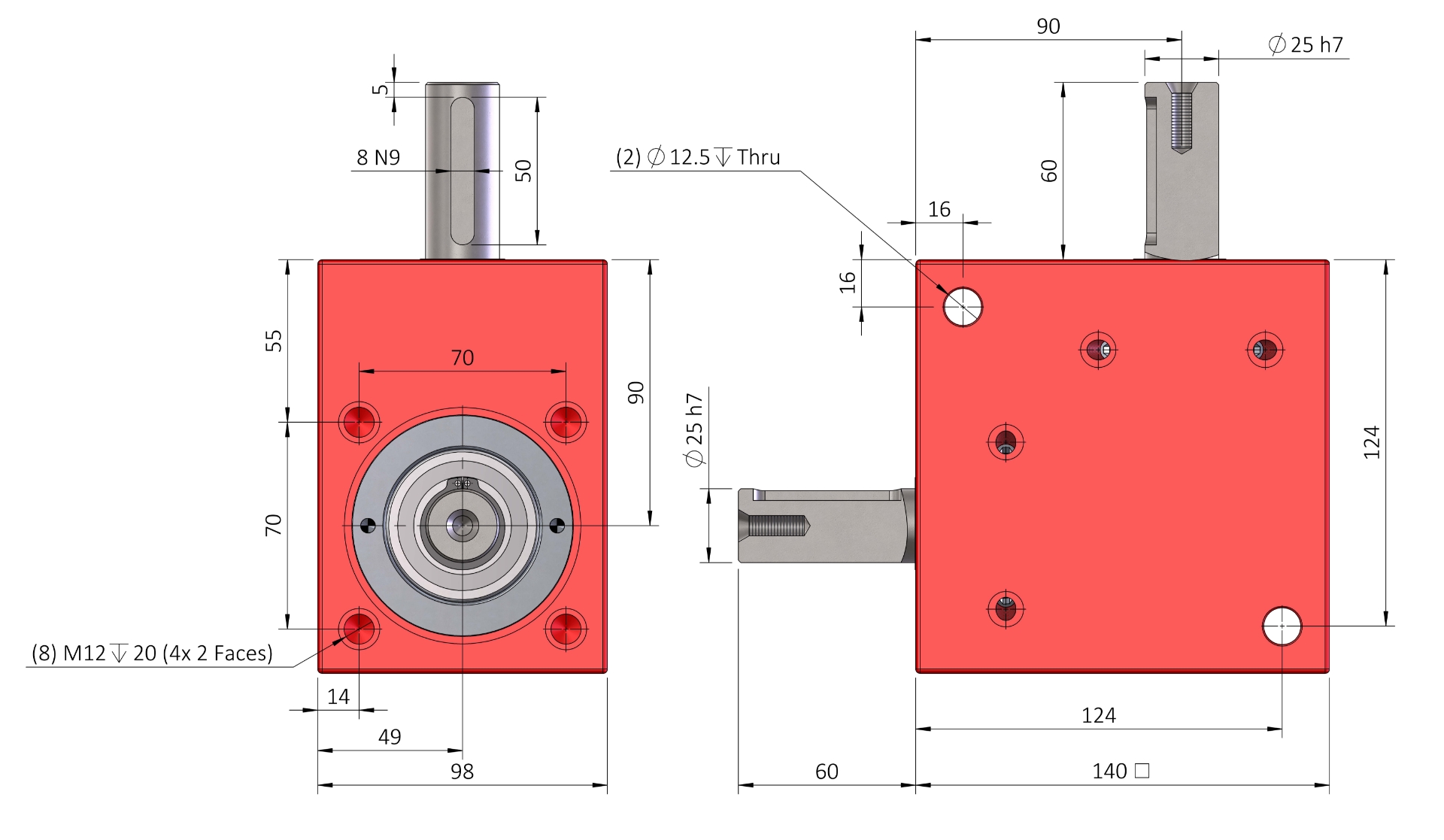

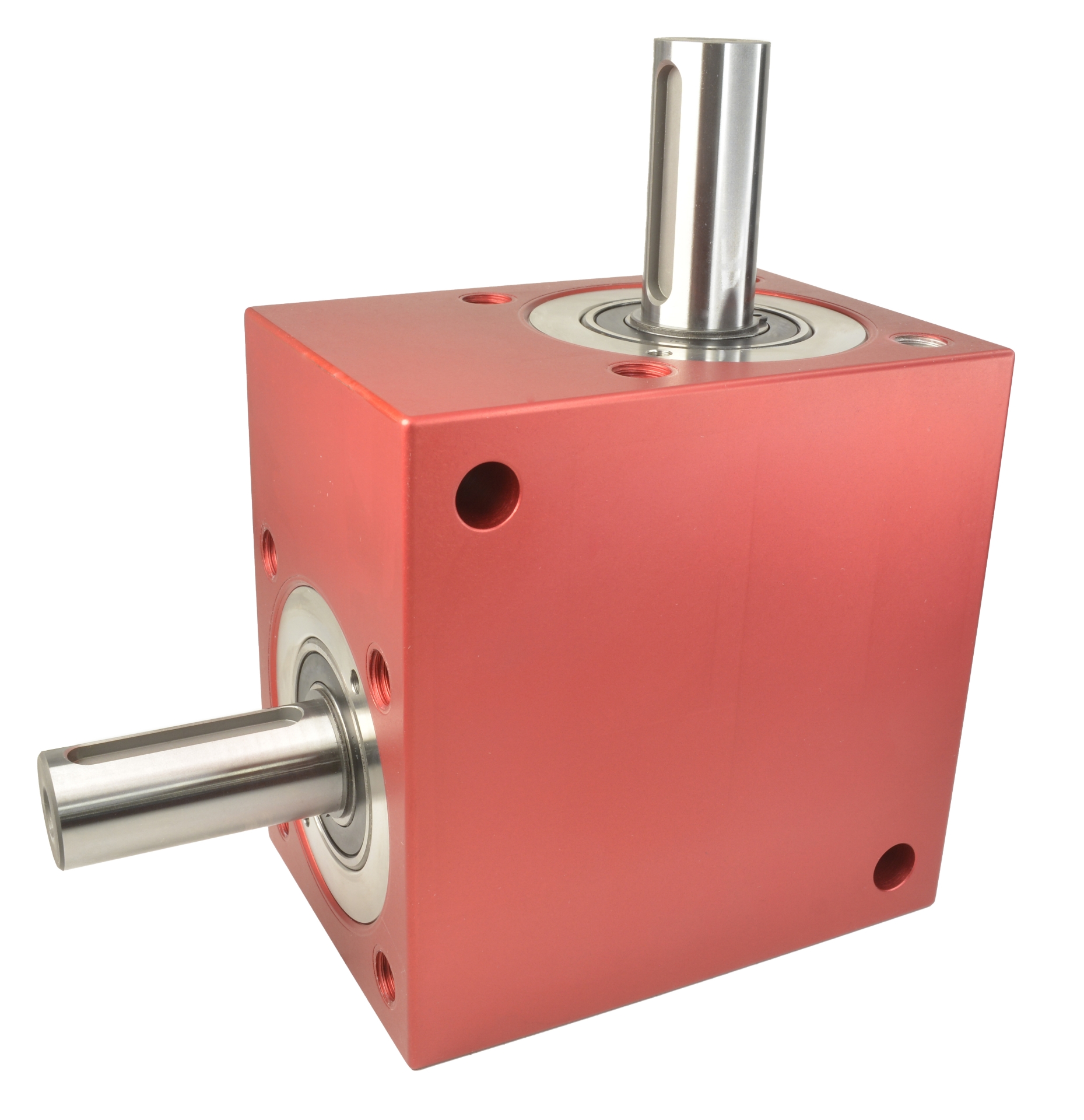

BLH70-BLHT70 128Nm Ø25-Shafts

Spiral Bevel Gearboxes

Designed and Manufactured by Ondrives at our factory in the UK.

Sku
(Part No.)
Type
Gear Ratio [i=]
Output Torque T₂n [Nm]
Output Backlash j
BLH70-11 x Input 1 x Output1:151.00≤0.75°
BLH70-21 x Input 1 x Output2:134.00≤0.75°
BLHT70-11 x Input 2 x Output (Thru Shaft)1:151.00≤0.75°
BLHT70-21 x Input 2 x Output (Thru Shaft)2:134.00≤0.75°
BLH70-1A1 x Input 1 x Output1:151.00≤0.5°
BLH70-2A1 x Input 1 x Output2:134.00≤0.5°
BLH70-1AR1 x Input 1 x Output1:151.00≤0.16°
BLH70-2AR1 x Input 1 x Output2:134.00≤0.16°
BLHT70-1A1 x Input 2 x Output (Thru Shaft)1:151.00≤0.5°
BLHT70-2A1 x Input 2 x Output (Thru Shaft)2:134.00≤0.5°
BLHT70-1AR1 x Input 2 x Output (Thru Shaft)1:151.00≤0.16°
BLHT70-2AR1 x Input 2 x Output (Thru Shaft)2:134.00≤0.16°
;
;
