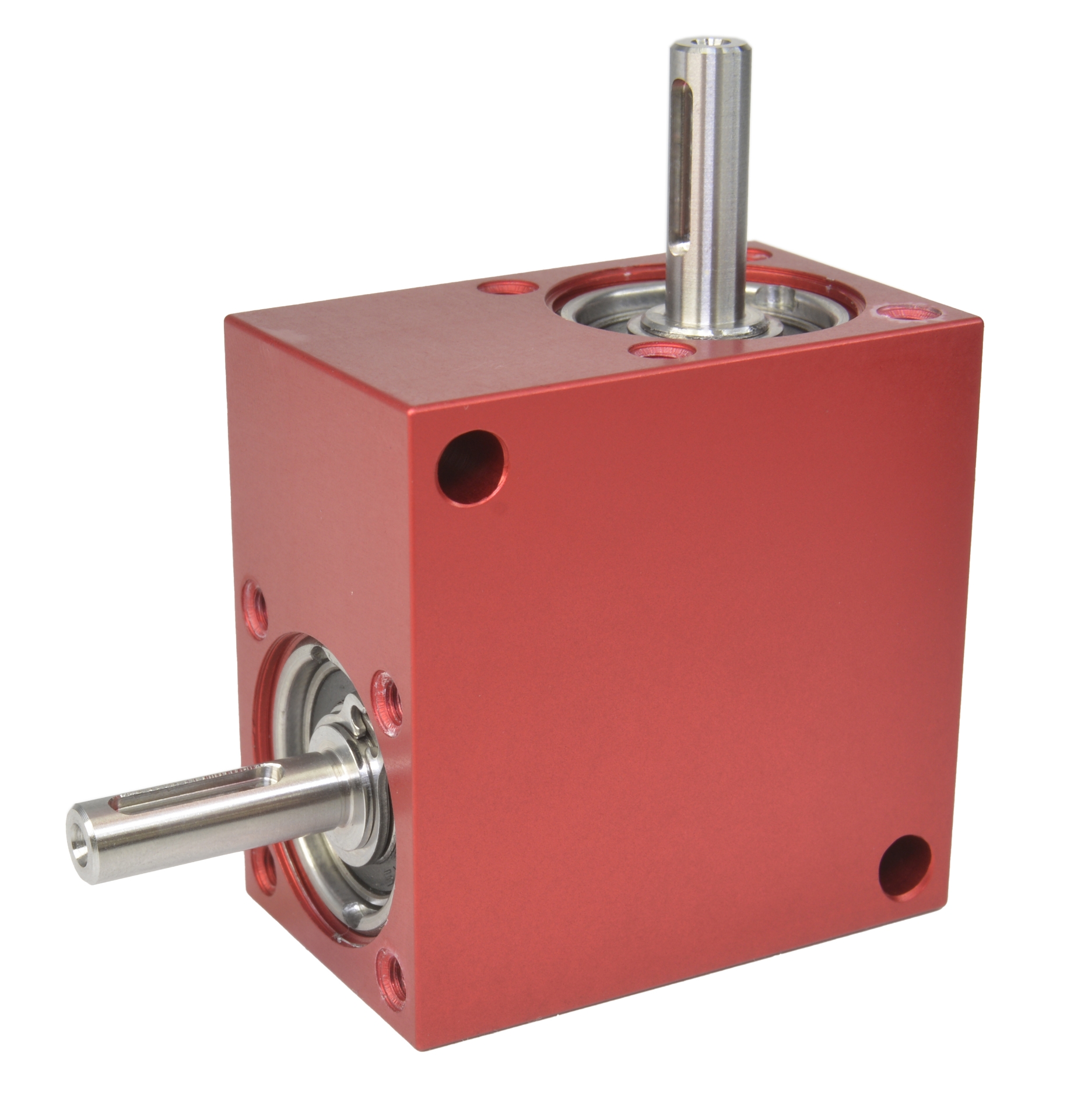

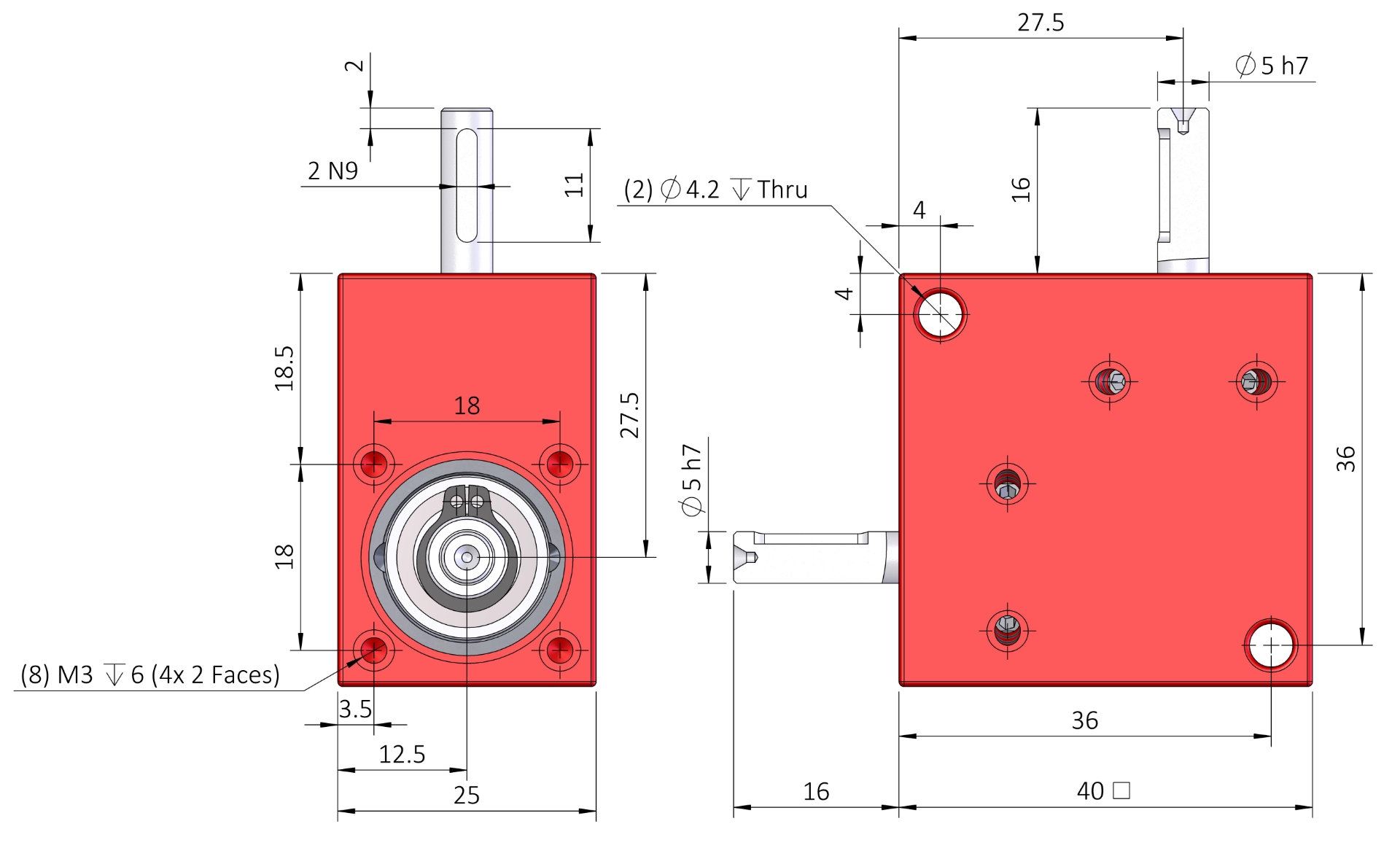

BLH20-BLHT20 1.77Nm Ø5-Shafts

Spiral Bevel Gearboxes

Designed and Manufactured by Ondrives at our factory in the UK.

Sku
(Part No.)
Type
Gear Ratio [i=]
Output Torque T₂n [Nm]
Output Backlash j
BLH20-11 x Input 1 x Output1:10.88≤0.75°
BLH20-21 x Input 1 x Output2:10.70≤0.75°
BLHT20-11 x Input 2 x Output (Thru Shaft)1:10.88≤0.75°
BLHT20-21 x Input 2 x Output (Thru Shaft)2:10.70≤0.75°
BLH20-1A1 x Input 1 x Output1:10.88≤0.5°
BLH20-2A1 x Input 1 x Output2:10.70≤0.5°
BLH20-1AR1 x Input 1 x Output1:10.88≤0.16°
BLH20-2AR1 x Input 1 x Output2:10.70≤0.16°
BLHT20-2A1 x Input 2 x Output (Thru Shaft)2:10.70≤0.5°
BLHT20-1A1 x Input 2 x Output (Thru Shaft)1:10.88≤0.5°
BLHT20-1AR1 x Input 2 x Output (Thru Shaft)1:10.88≤0.16°
BLHT20-2AR1 x Input 2 x Output (Thru Shaft)2:10.70≤0.16°
;
;
